Solar Sound Alarm Motion-Activated Animal Repeller



Thank you for purchasing our Solar Sound Alarm Motion-Activated Animal Repeller. This user manual is designed to help you understand the setup, operation, and maintenance of your device, please read through it carefully before using the product and save it for your future reference.


Product Features


Versatile Modes: You can choose from five different modes for various scenarios that fit your needs.


Wide Application: Ideal for homes, farms, warehouses, outbuildings, camping, and more.

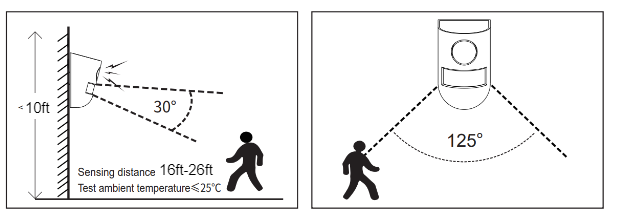

Enhanced Sensing: Detects motion within a distance of 16ft- 26ft (5-8 meters) and a sensor angle of 125°, with a loud 129dB siren and flashing lights.


Dual Charging Options: Utilize solar energy or DC charge (refer to the specific model) for flexibility in charging.


Full day- 24 hours, or night mode selection.


Long Standby Time: Enjoy over 50 days of standby time with a fully charged lithium-ion battery.

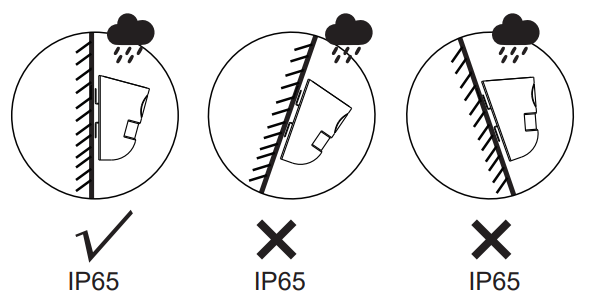

Weatherproof Design: With an IP65 waterproof rating, it withstands outdoor conditions.

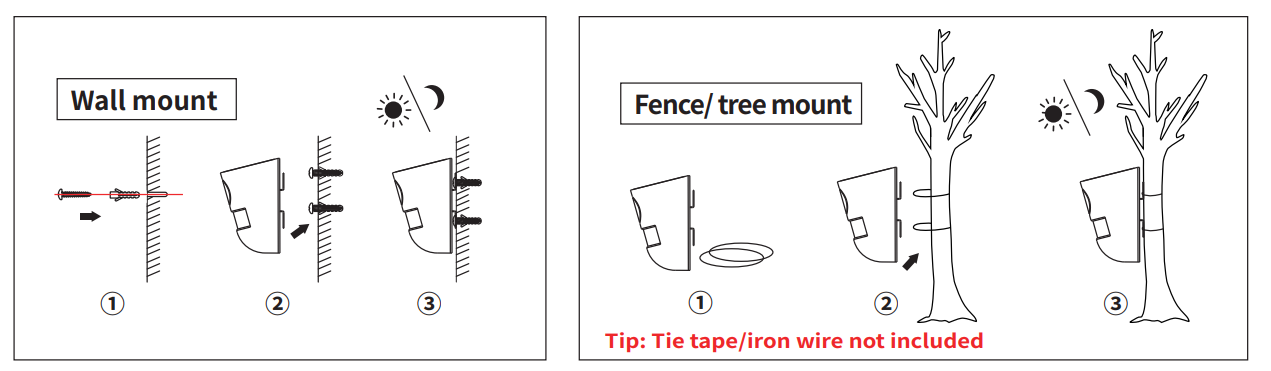

Easy Installation: Suitable for wall mount, fence mount, or tree mount configurations.




Specifications


  • Solar Panel: 5V*80mA polysilicon solar panel

  • LED: 6 LED flashing red lights

  • Siren Sound Level: 129dB, 45s sound alert duration

  • Battery: 3.7V*400mAh full capacity lithium-ion

  • Charge Time: Solar energy: 6-8 hours, DC: <1 hour (DC5V*≤1A)

  • Working Time: Motion sensor triggers >300 times, standby time >50 days

  • Waterproof Rating: IP65

  • Sensor Distance:16ft- 26ft (5-8 meters)

  • Sensor Angle: 125°

  • Working Temperature: 14 °F- 122°F (10°C to 50°C)


Operation


Mode Selection: Use the mode switch to select the desired operating mode. Each mode is indicated by flashing lights for 8 seconds upon selection.


  • Mode 1: Day & Night mode- 24h - Activates siren and flashing lights.

  • Mode 2: Day & Night mode- 24h - Activates only flashing lights (no siren).

  • Mode 3: Night mode - Activates siren and flashing lights.

  • Mode 4: Night mode - Activates only flashing lights (no siren).

  • Mode 5: Turns off the alarm system.

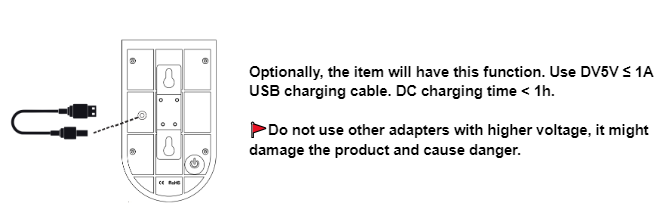

Charging: Charge the Solar Sound Alarm Repeller using solar energy or DC charge (refer to model specifications). Solar charging typically takes 6-8 hours, while DC charging is completed in less than 1 hour.



Usage: Once charged and set to the desired mode, the Solar Sound Alarm Repeller will activate according to motion detection, emitting a loud siren and flashing lights as per the selected mode.



Attention


Working temperature is 14 °F- 122°F (10°C to 50°C). Higher environmental temperature can diminish its sensitivity and cause a shortened sensing distance.


Siren Activation: Any moving object close to human body temperature can trigger the siren. Environmental temperature, light intensity, and signal interferences may affect sensor operation.


Battery Power: Low battery power may lead to false alarms. Keep the battery charged for optimal performance.


Mode Change: When changing modes, the product will flash for 8 seconds before entering the active state.


Tip: Tie tape or iron wire for mounting is not included. Ensure proper mounting to maximize sensor effectiveness.
