Solar Strobe Light Motion-Activated Animal Repeller


Thank you for choosing our Solar Strobe Light Motion-Activated Animal Repeller, a cutting-edge security device designed to deter unwanted animals from your property with its advanced motion sensor technology and powerful strobe lights. This user manual provides comprehensive installation, operation, and maintenance instructions to ensure optimal performance. Please read it before using the product and save it for future reference.


Product Features


Suitable for various locations including houses, orchards, farms, warehouses, etc.

Effective motion detection range of 16ft- 26ft (6-8 meters) with a 360° sensing angle.

High-pitched 129dB alarm with flashing lights for enhanced security.

Selectable working modes for 24-hour or night-time operation.

Long standby time of up to 200 days with quick charging in just 1 hour.

Wireless remote control convenient for long distances.

Dual charging options: solar energy and DC charging for continuous use.



Specifications


Solar Panel: 5V 150mA

  • LED: 6 red flash LEDs

  • Material: ABS

  • Recording: Max 15 seconds, repeatable up to 2 times

  • Charge Time: Solar charge > 8 hours, DC charge < 2 hours (DC 5V, 1A)

  • Working Time: Motion detection > 100 times

  • Sound: Built-in 13 sounds + Recording

  • Battery: 3.7V, 1200mAh lithium battery

  • Motion Sensor Distance/Angle: 16ft- 26ft (5-8 meters), 360°

  • Remote Control Distance: Up to 656 ft (200 meters)

  • IP Rating: IP55 (waterproof)


***Note: Charging efficiency may vary depending on the weather and season. For optimal performance, ensure that the mounting location receives direct sunlight for at least 2 hours each day.


INSTALLATION AND OPERATION


  • Choose a suitable mounting location with direct sunlight for optimal charging efficiency.

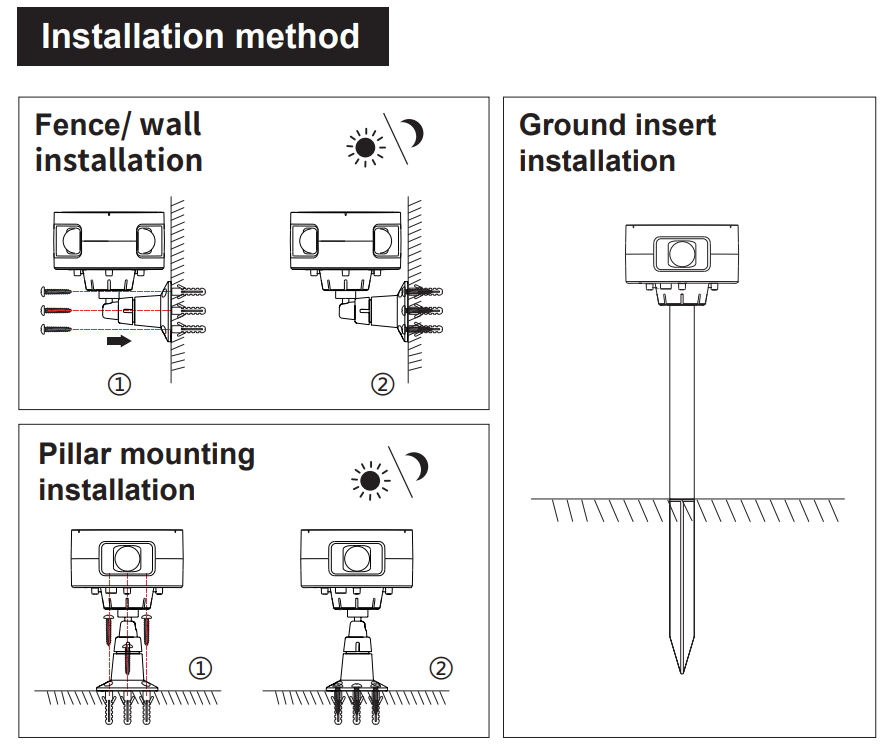

  • Installation options include fence/wall mounting, ground insertion, or pillar mounting.

  • Ensure proper positioning for maximum motion detection coverage.

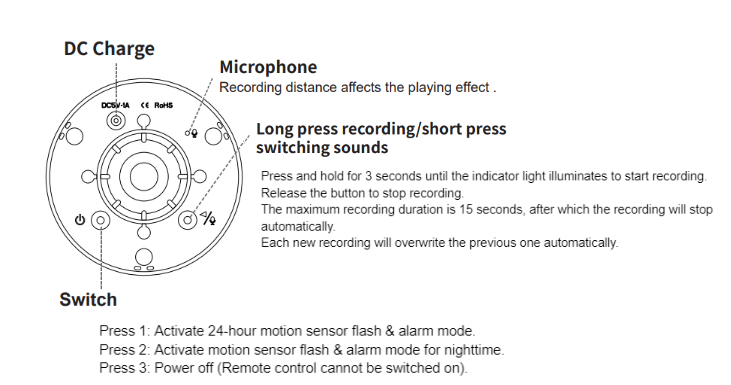

 Wireless remote control


A Key: Activates 24-hour motion sensor flash & alarm mode.

B Key: Activates motion sensor flash & alarm mode for nighttime.

C Key: Switches between different sounds.

D Key: Puts the host on standby (Remote control can be switched on).



The device features a built-in library of 13 sounds, including:


  • Dogs barking and Gunshots

  • Wolf howling

  • Gong sounds

  • Eagle calls

  • Firecrackers

  • Lion roars

  • Pig killing sounds

  • Explosions

  • Di di sounds

  • Car speaker sounds

  • Alarm sounds

  • Bells

  • Sirens

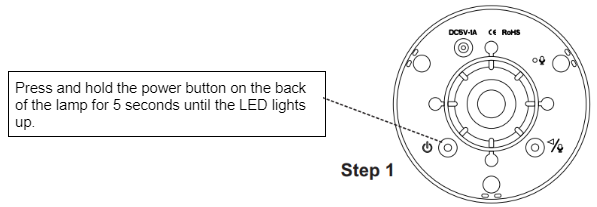

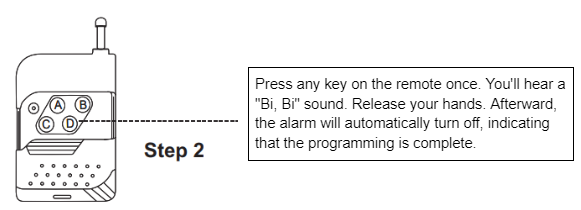

The remote program


(FR wireless frequency: 433MHz)


  1. Each alarm includes an independent remote. The remote can be programmed for use independently or with multiple alarms.

  2. Ensure there is no signal interference within a 328ft (100-meter) radius when resetting the remote control.



Please avoid using incompatible chargers or overcharging, as it may damage the product.

Use a DC 5V*1A adapter to charge, the charging time is less than 2 hours.




Attention


  • The operating temperature range should be between 14 °F- 122°F (10°C to 50°C). Using the product outside this range may result in abnormal operation.

  • Low battery power may lead to false alarms.

  • The device may trigger an alarm in response to any moving object close to human body temperature.

  • The motion detector's range may vary due to surrounding temperature, sunlight intensity, and signal interference. Higher temperatures may reduce the detection distance, while detection distance at lower nighttime temperatures may increase. Strong direct sunlight may also cause false alarms.

  • Before using the remote control, make sure to activate the host switch.
