USER NOTICE
This manual will provide you, the user, with directions for the safe and efficient operation of Pest Repeller. The RC stands for "remote control". Please read this manual carefully before using this product, and keep it for future reference.
IMPORTANT!
Before you plug in your unit, it is important to understand sonic and ultrasonic signals.
The sonic signal is the alarm/harassment sound humans can hear. Combining this sound with ultrasonic may give you better results for startling and repelling intruders and animals from your yard.
However, if the sonic sound bothers your neighbors, you can turn this off using the "Sonic Volume" dial. Just turn the volume dial to zero.
The ultrasonic signal is the high-pitched frequency that only animals can hear. This sound will be emitted whenever your device is on (plugged in or on battery power).
You can adjust the frequency using the Frequency dial, but you won't turn it off by adjusting either the Sonic Volume or Frequency dial.
INTRODUCTION

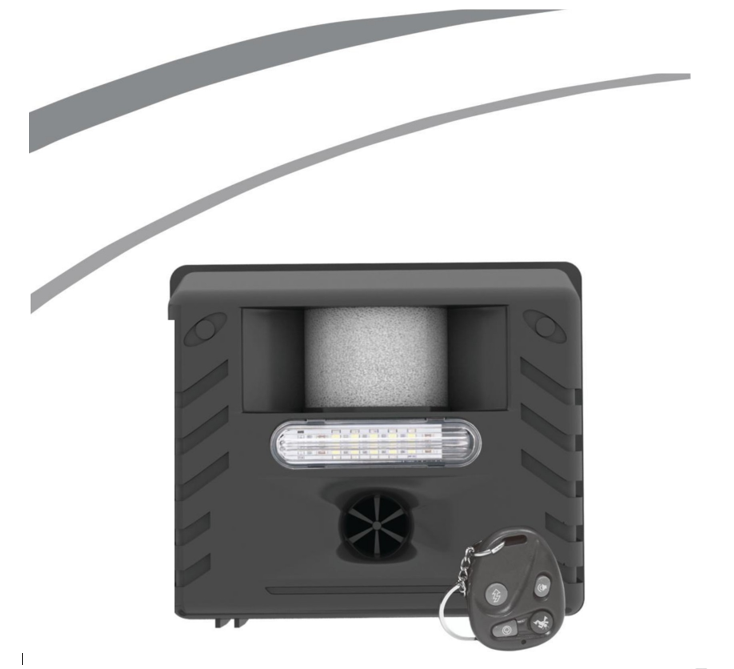

This Pest Repeller is the industry's most advanced outdoor anti-pest product. The product brings together peace of mind and affordability as a result of years of research and innovation.
This device allows you to rid your yard, garden or outdoor area of pests humanely and without the use of poisonous chemicals.
How does it work?
This Pest Repeller uses ultrasonic technology to repel pests from your yard as well as sonic alarm/harassment noise and strobe lights. The device is environmentally friendly, safe for humans and pets, and won't even harm the pests you are trying to repel.
It is equipped with an infrared motion sensor that activates when pests are in range. The strobe light and sensor can also be activated by remote control.
Features:
Your device is equipped with several features:
AC Adapter
Battery-operational: Requires four C batteries (not included) Intelligent Power System (IPS): AC power will take priority over battery when both are installed. In the case of power failure, the device will switch to battery backup when batteries are installed.
Ultrasonic: Adjustable frequencies so high that only pests can hear them
Sonic: Audible alarm
Light: Ideal for repelling nocturnal animals
Modes: Motion Sensor, Constant or Continuous Sweep Infrared
Motion Sensor: Detects pests in range and activates the device.
Infrared Motion Sensor: Detects pests in range and activates the device.
Remote Control: Four-button remote (Standby, Turbo, Ultrasonic, Strobe)
Operating Time: Select Day, Night, or 24HR.
Optional Accessories: You can purchase an Extension Cord, Cigarette lighter, and Alligator clip. (Use in the Car)
SAFETY AND MAINTENANCE
1 . Please read the manual before using the product.
2. Do not restrict airflow around the unit. Do not position behind furniture or curtains. For best effect, position in open areas.
3. Do not attempt to open the unit beyond its functional use.
4. This is not a toy. Do not hold up to your ears with either the ultrasonic or sonic sounds activated.
5. Please consider other people and their privacy and peaceful enjoyment of property before using the security alarm/harass- ment sound and Strobe Light.
6. This pest repellent is environmentally friendly, safe, and harmless to pests and pets.
7. Keep the motion sensor lens clean by periodically wiping it with a damp cloth.
8. Remove batteries when not in use to avoid leakage that could damage the unit.
9. Check all cables used to connect the device for cracks or damaged insulation. Do not use the device in case of defects or serious damage.
10 . Do not connect any power sources to the 4C size battery holder except C size batteries, or it may damage the unit. Contact us for information about our special extension cord with an alligator clip and D/C power plug for connecting to a 12V D/C or 24V D/C Sealed Lead-Acid (SLA) battery.
QUICK SET-UP
Congratulations on your new Pest Repeller! You have two options to get your device started. Your unit came with an AC adapter. Remove the back cover from your device and plug in the adapter. You will see an opening at the bottom of the unit that you can run the cord through.
If you don't have an electrical outlet available in the area, you will need four C batteries (not included).
When you install power, the unit will wait a few moments at which point a red light will turn on. The light will stay on for about 20 seconds and then switch off. Your device is now ready to use.

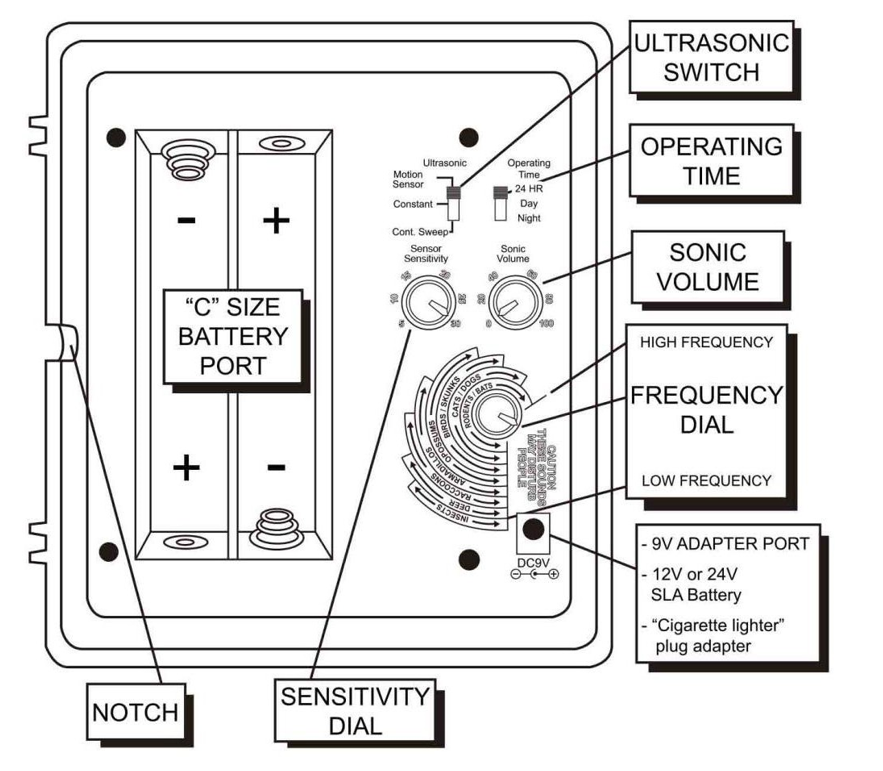

All of your controls are located at the back of your device. Remove the cover to adjust the following settings as needed.

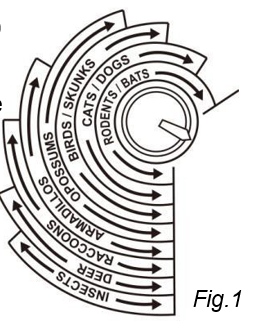

Frequency Dial: You will see several types of pests listed around the Frequency dial (Fig. 1) and the ranges of frequencies that are ideal for repelling them. You can turn this dial to the setting that best suits your needs. If you are trying to repel more than one type of pest, set it somewhere within the ranges of each of them. Adjust the frequency slightly every few
weeks to avoid allowing the pest to adapt to the sound.
Modes: This Pest Repeller has three different modes. Try all three to see what works best on the animal you are trying to repel.
Motion Sensor: The Motion Sensor will activate the ultrasonic and sonic sounds when it detects the pests are in range.
Constant: The Constant setting will activate the ultrasonic and sonic noises and cycle through them at the range you fix at varying intervals. The motion detector will deactivate on this setting.
Continuous Sweep: The Continuous Sweep will activate a range of sonic and ultrasonic frequencies
randomly at intervals. The Motion Detector will deactivate on this setting. This helps repel several different types of pests.
Sensitivity Dial: The Sensitivity dial adjusts the distance at which the device's motion sensor will work.
Sonic Volume: The Sonic Volume adjusts the loudness of the alarm and harassment sound. If this sound bothers you or your neighbors, turn it all the way down. The ultrasonic signal will still be effective in repelling pests.
Here are some suggested settings for common types of pests:
Raccoon: Turn the Frequency dial all the way to the left (counter-clockwise) of the raccoon range, and blast the alarm/harass- ment sound.
Squirrels/Mice: Turn the Frequency dial to the right (clock- wise). If you are not sure, start at the top of the range (right), and adjust it downwards until you find the setting that works best.
Rabbits: Turn the Frequency dial all the way to the left (counter-clockwise).
Birds/Crows: Turn the Frequency dial all the way to the left (counter-clockwise), and blast the alarm/harassment sound.
Dogs/Cats: Turn the Frequency dial all the way to the right of the range (clockwise), and adjust downwards until you find the setting that works best. Dogs and cats can have varying hearing sensitivities.
For large-sized animals (deer, bears, etc.): Turn the Frequency dial all the way to the left, and blast the alarm.
PLACEMENT
It's important to place the device where it will be most effective. For ground animals, like raccoons, coyotes, etc., place the unit near the height of the animal you want to repel and face the area where they most like to frequent. Don't place it on the ground as this will limit the device's effective range. Using the screws, you can hang the unit on a wall, tree, fence, stairs, or even on top of your mailbox. If your device is off the ground and higher than the animal's eye level, tilt it downward somewhat. For animals that nest in trees 一 birds or squirrels 一 place the device on a tree or rooftop.

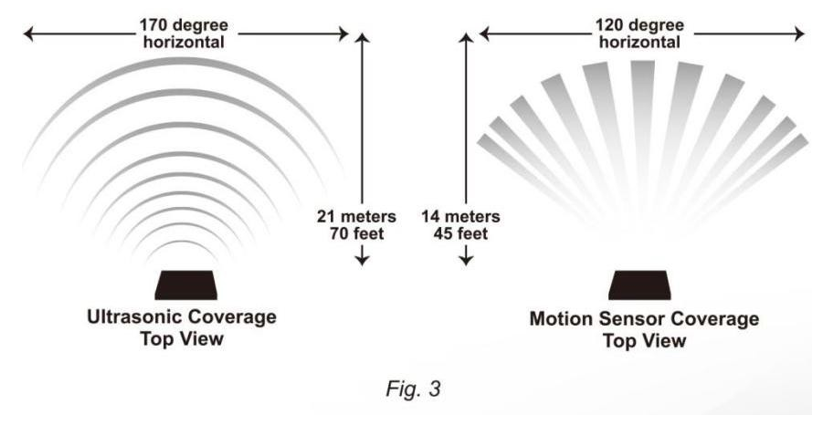

The ultrasonic frequency has a range of up to 70 feet (21 meters), but the closer it is to the animal, the more effective it will be.
Ultrasonic signals cannot penetrate solid surfaces. Make sure there are no windows, doors, fences, or other items between the device and the area you want to cover.
The ultrasonic sound emits in a forward direction from the device with a range of about 170 degrees horizontal and 60 degrees vertical.
THE SCIENCE BEHIND IT
This Pest Repeller comes equipped with a variety of useful features. You will need to experiment to see which features or combination of features give you the best results in ridding your yard or other open area of pests.
Ultrasonic:
The primary feature of your device is the ultrasonic signal. This is a high-pressure sound that is only slightly audible to humans. However, it is very effective at startling and scaring away unwanted pests. Using a variable pulse generator, the ultrasonic emits a range of fluctuating sound waves to prevent the pest from becoming accustomed to the Sound.

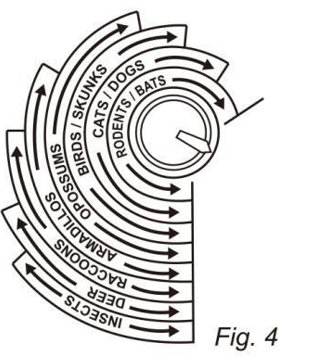

Using the Frequency dial: In order to use the ultrasonic signal to the best effect, you will need to become familiar with the ultrasonic Frequency dial. Remove the back cover from your device. It should snap off just like a lid. The Frequency dial is located in the top middle. It is the largest dial (Fig. 4).
You will see a variety of ranges indicated around the dial. These ranges are identified by the animals they ideally repel. Choose a range that best reflects the type of animal you are trying to repel. Insects and large animals are repelled by lower frequencies (counter-clockwise). Rodents are repelled by higher frequencies (clockwise).
Ultrasonic signals travel in a forward direction. You will need to point the device towards the area where you are having a pest problem. The signal will range 170 degrees horizontally and 60 degrees vertically from the device (Fig 3; page 7).
Note: If you have a cat or a dog you may have to turn the device off when they are in the yard. This depends on the frequency you are using because cats and dogs can have very different levels of hearing depending on age or size. Other types of pets such as rodents or insects may be more sensitive. Ultrasonic waves cannot penetrate surfaces, so put them in a box or leave them behind and out of range of the device.
Infrared Motion Sensor:
Your device can be set to activate only when animals come into range. Set the mode switch to "Motion Sensor" to select this feature. When an animal or human enters the range of the device within 45 feet (14 meters), a red light will go on and the device will activate both the ultrasonic and sonic. The range of the sensor may vary due to ambient temperature.
Note: You can test your device to see if it is working by switching the mode to "Motion Sensor" and walking or waving your hand in front. If you see the red light, you will know the movement has been detected. If the Sonic Volume is turned up, you will also hear the alarm/harassment noise. The ultrasonic signal may also be slightly audible to some people.
The Motion Sensor is equipped with a dial that controls its sensitivity (Fig. 5). Turn it all the way up to ensure it works as，
well as possible (30). If you find the device activates when there are no animals in the yard, turn it down to about 25.
Strobe Light with Sundown Sensor:
Your device is equipped with a strobe light to help drive away nocturnal creatures, like raccoons. The Strobe Light is designed to be disorienting and works along with the ultrasonic/sonic sound to create an audio and visual assault on the animal's senses driving them from your property. The Strobe Light flashes repeatedly in quick succession each time it is activated. The Strobe Light will only come on at night.
OPERATING TIME:
Some pests, like birds, are active only in the daytime. Others, like raccoons, are active at night. You can choose whether to operate your device only in the daytime, nighttime, or all day with the power-saving Operating Time feature (Fig. 6). The remote control's Turbo button works 24 hours per day (see page 15).
Sonic:
In addition to the inaudible ultrasonic signal, your device is equipped with a sonic signal. This helps to scare off any people or pests lurking around your property or large animals such as bears, coyotes, raccoons, skunks, and birds. At full volume, the sound can be heard up to 300 feet (91 meters) away. It can also act as a security alarm for your yard.
How to use: The sonic signal is controlled by the Sonic Volume dial. To turn it up, turn the dial all the way clockwise. If you find the sonic noise bothers you or your neighbors, you can turn it off by turning the volume dial all the way down (counter-clockwise) or simply lowering the volume at your discretion. Adjusting the Sonic Volume will not affect the ultrasonic signal which emits at a fixed rate.
OPERATING T Pest Repeller
Using the A/C Adapter:
Remove the back cover of the unit by gently pulling it off. Plug one end of the A/C adapter into the 9-volt D/C jack located beside the frequency dial. Plug the other end into any standard A/C outlet. Thread the A/C adapter cord through the notch at the bottom of the unit and then replace the back cover by snapping it into place. (For diagram, see page 19) If you do not have a weather-proof electrical outlet, the adapter should be plugged in indoors. The device and the 9-volt port are weather-resistant, but it is best to protect the Pest Repeller from heavy rains or snow.

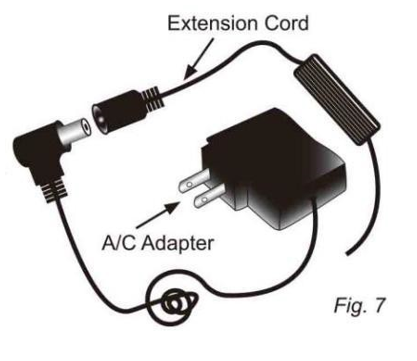

Connecting the extension cord:
To connect the extension cord, simply plug in the small side of the extension cord at the back of，
the unit where it indicates D/C 9V, then attach the other larger plug to the A/C adapter(Fig.7).
(Not available)
Installing the batteries:
This Pest Repeller can also operate on batteries. It uses four size C batteries. To install the batteries, remove the back panel by gently pulling it off. Install the batteries as shown on the diagram (see page 19) so the positive and negative poles match the poles printed on the unit. With the batteries in place, replace the back cover of the unit by pressing it until it snaps closed.
Intelligent Power System (IPS):
This Pest Repeller is designed to provide uninterrupted protection even during a power failure. Install four C batteries and plug in your device. Your device will be powered by electricity. If the power fails, the device will automatically switch to battery backup.

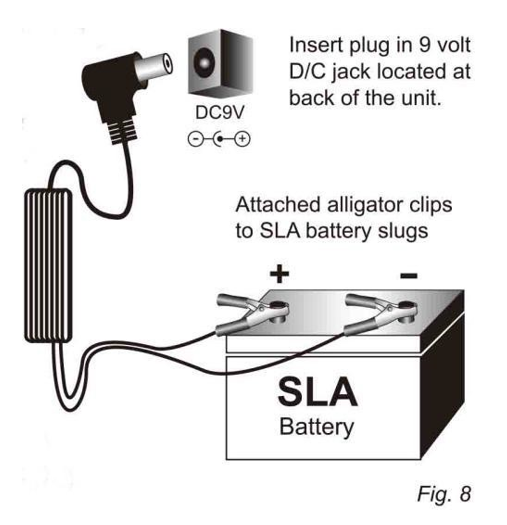

Available Power Source Accessories:

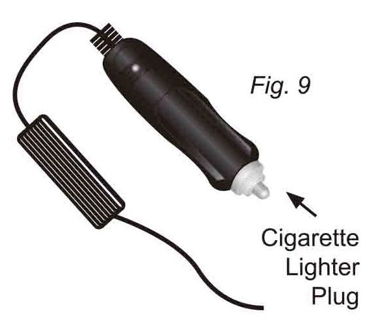

Some of our customers choose to use their device in remote areas, or areas without traditional power outlets. This Pest Repeller can be connected to a 12V D/C or 24V D/C Sealed Lead-Acid (SLA)battery using our special extension cord with an alligator clip and D/C power plug(Fig.8). It can also be powered by a vehicle's "cigarette lighter" power outlet with our special adapter cord (Fig. 9). For ordering information, please direct contact us.

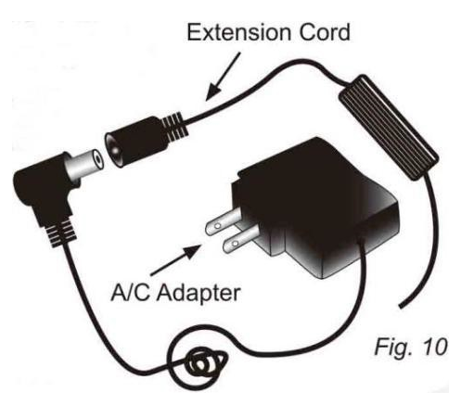

33-foot (10-meter) extension cords can be used as well (Fig. 10). You can purchase them according to your needs.
Pest Repeller on and off:
This Pest Repeller does not have an on/ off switch. To turn it off, unplug it, remove the batteries, or use the standby mode on the remote control. To turn it on, plug it in, insert batteries, or deactivate standby using the remote control.
When the unit is plugged in or batteries are installed, it will trigger a red sensor light within 20 seconds. The light
will stay on for about 20 seconds, after which the device will be ready to operate.
SETTINGS:
You can customize your device's settings for the best results in your particular situation. The ultrasonic setting control switch is located on the top left of your control panel. Remove the back cover to access it.
Motion Sensor: This setting will activate the Ultrasonic, Sonic, and Strobe Light when the device senses that an animal is in range. Constant: This setting will cause the device to emit a frequency at random intervals of not more than 40 seconds on AC. The pause in between helps ensure the pest does not become accustomed to the sound. You control the frequency emitted using the Frequency dial. This is a good setting to use if you only want to repel one type of animal and if the animal sometimes goes out of the range of the motion sensor. Battery saver: On battery power, the device will activate for shorter durations at intervals of up to five minutes to preserve battery life.)
Continuous Sweep: This setting emits cycles of random frequency (approximately from 15kHz to 25kHz) with a break of not more than 40 seconds. This is the ideal setting if you want to repel two or more different types of pests. (Battery saver: On battery power, the device will activate for shorter durations at intervals of up to five minutes.)
Frequency Dial:
Various pests have different ranges of ultrasonic hearing. Sometimes you will need to experiment to find the range that best repels the pest you want to control. However, the Frequency dial illustrates a range of frequencies and the pests they are effective at repelling as a guide.
Sensitivity Dial:
The "Sensor Sensitivity" dial controls the detection range of the device's Infrared Motion Sensor. You can adjust the range from near to far (5 to 45 feet/1.5 to 14 meters). The ideal range will vary under different environments. Try setting it to maximum and reducing it if you find the device activates when there is no motion in the area.
Mounting to a Wall:
Two screws and fasteners are included with this unit for mounting on walls. Drill the screws into a suitable wall or upright surface. Align the notches on the back cover with the screws and hang the unit.
If installing the unit outdoors, place it at the height of the pests if possible. If not, tilt the unit downwards slightly to capture the pests in the device's effective range (see diagram on page 7). The unit must be aimed in the direction of the pests with no objects (e.q. windows, walls, or fences) in front of it.
Training a Pet:
Some people try Pest Repeller out on their pets to see if it works or to train their pets not to enter a particular area. It's important to remember that your pet is used to living comfortably in your home. He may be annoyed by the sound, but he may not be deterred from the room. As far as he is concerned your home is his proper place. An outdoor animal on the other hand is sensitive to noise and alert to danger. In the same way, an alarm will repel an intruder, the ultrasonic signal will repel an unwanted animal.
If you want to use the ultrasonic device to deter your cat or dog from a part of the house, you may have to train them. When the device activates, show them what to do. Demonstrate to them that it's time to leave the room when they hear the noise and that doing this will stop the noise. Dogs will, of course, be easier to train than cats.
Note: Just like your pet, wild animals will have certain habits and behaviors that can change over time. If they are accustomed to finding food in your backyard, they may continue to come even if they are disturbed by the ultrasonic, especially if they can't find food elsewhere. The Yard Sentinel RC'"" is designed to work in combination with other good pest management practices. For tips on how to keep pests away, see page 18.
REMOTE CONTROL

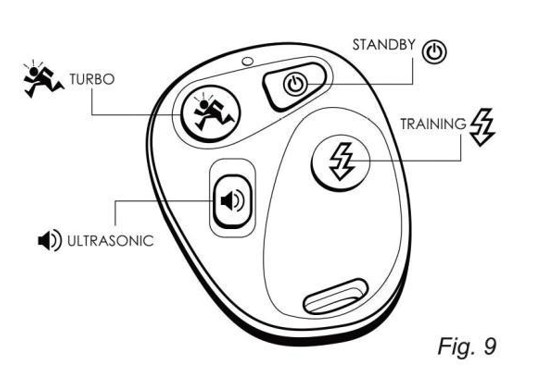

This Pest Repeller remote control is simple to use with four functions offering optimal user control over your device. It can operate up to 80 feet (25 meters) from the device. It has four buttons that operate the Ultrasonic, Strobe, Standby mode, or Turbo function.
Note: The volume settings for the Turbo alarm function are located at the back of your device.
After plugging in Pest Repeller or installing batteries, a red light will come on for approximately 20 seconds. Once the unit is powered, the remote can be used to activate the four functions:
Turbo Button:
The Turbo button (top left) is a safety feature to protect you and your family outdoors. When activated, the Turbo turns
on all functions for 20 seconds (Ultrasonic, Sonic and Strobe). This can startle an intruder or large animal entering your campsite or yard, giving you time to get help or leave the area. This function works even when the device is on Standby mode. It works 24 hours a day regardless of the Operating Time setting (page 10). To adjust the volume of the alarm, remove the back cover and adjust the Sonic Volume.
This mode can also be used to repel large animals when you see them enter your property.
Standby mode:
To deactivate your device, press the Standby button (top right). You will hear a long beep sound. The device's red light will flash continuously and all the functions, except for Turbo, will be on Standby mode. To activate the device, press the Standby button once. You will hear a shorter beep sound and the device will begin working as set by the user.
The Standby mode helps switch off the device when want to use your yard without setting off the alarm/harassment sound or letting your pet into the yard without having to unplug the device. When finished you can simply turn off the standby mode With the remote control. You will hear a beep and the flashing LED Light will turn off.
Strobe light button:
This button (bottom right) activates the Strobe Light function. Press the button once. A light will come on to tell you that the device has been activated. It will stay on for about 20 seconds.
The Strobe Light is effective against birds and pests that are active at night like squirrels, mice, rats, skunks, cats, and dogs.
The Strobe Light only functions at night or in dark places.
Ultrasonic:
The Ultrasonic button (bottom left) turns on the high-frequency sound that effectively repels pests from your yard or other open area. Press the button once to activate. A light will come on. The sound will be activated for about 20 seconds.
PRODUCT SPECIFICATIONS
A/C Adapter
Input: A/C 110-240V, Output: D/C 9V/500mA x 1 (included)
Battery
For transmitter: 12V/model No. 27A x 1 (included)
D/C power sources: four C-size batteries or vehicle power source by connecting cigarette lighter socket or D/C12V or 24V sealed lead-acid (SLA) battery. (D/C power accessories are sold separately.)
Ultrasonic Frequency
15 kHz to 25 kHz (adjustable)
Output Sound Pressure
0 to 110dB
Power Consumption
0.18W to 1.8W when powered by AC adapter
0.07W to 1 W when powered by batteries
Optimum Distance
- Remote control: up to 80 feet (25 meters) approximately (open space)
- Infrared sensor: up to 45 feet (14 meters) approximately
- Ultrasonic effective range: 5,000 sq. feet (465 sq. meters) or 70x70 feet (21 x21 meters)
Security Alarm/Harassment Noise Sound Pressure
0-110dB maximum (adjustable),+/-5dB
Remote Control
4 button control (no programmable options)
Operating Time
Adjustable operating time for Day, Night or 24 HR
Strobe Light
The strobe light deactivates automatically during the day and in light areas. Activates automatically at night or in dark areas.
9 TIPS TO KEEP PESTS AWAY
Here are some preventive measures you can take to keep pests out of your home and yard:
1 . Keep garbage lids closed tightly.
2. Store food in airtight containers.
3. Don't leave pet food and water out overnight.
4. Repair plumbing leaks and cracks.
5. Drain all liquids and wash containers before you put them in the recycle bin.
6. Accumulating paper products such as cardboard boxes, bags, newspapers, etc., should be avoided.
7. Keep grass short around the foundation of the house and the trees and shrubs planted away from the house.
8. Screen all vent openings such as crawl spaces, attics, or laundry vents.
9. Repair and adjust windows and door screens.
DIAGRAM
