Ultrasonic Animal Repeller - 5 adjustable modes- user manual

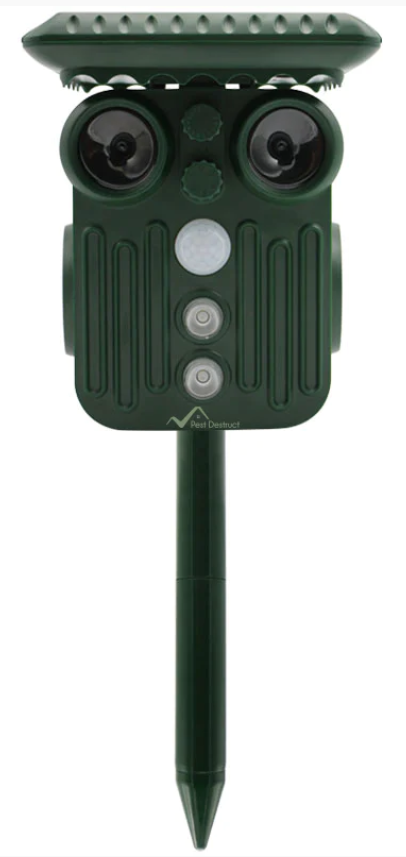

Product Overview


Thank you for choosing Pest Destruct Animal Repeller!

Please read and understand these instructions and keep this manual for future reference.


How it works


Pest Destruct Animal Repeller is designed for permanent service, allowing you to install it once and let it work! It is weather-proof and resistant to harsh weather conditions, which is why it is suitable for outdoor use.



It uses a solar panel, located on the top of the unit to recharge the internal batteries. The passive infrared sensor- PIR, detects motion and triggers the ultrasonic speaker, which then starts emitting a high-frequency sound that humans cannot hear, but it bothers animals’ hearing and nervous systems, making them feel uncomfortable and causing them to leave your space.


Important Safety Information

  • Humans may hear low frequencies of this unit, so put the device out of its coverage areas where humans inhabit.

  • Do not install the device in areas where children or babies play.

  • This product is not a toy, please keep it away from children and operate it after thoroughly reading the instructions.


Installation instructions


  1. Please install the device in the direction that animals come from to get a better effect. Peel off the transparent protective coating on the top of the solar panel to ensure it can absorb sunlight efficiently.

  2. Do not cover up the PIR sensor, choose a place where the solar panel (on top of the repeller) can collect as much sunshine throughout the day as possible.

  3. Insert the spike into the ground carefully. Please leave the spike 5 inches or more above the ground. It is suggested that you dig a hole and then insert the unit to ensure no damage occurs.

  4. Place the unit in direct sunlight and “OFF” position for 24 hours, or recharge via USB  prior to first use to ensure the product is fully charged. You may repeat this action every time you start using the product again after a long resting time (such as, after winter), or if you had many consecutive cloudy days, which caused the battery to get low.




Settings and assembly



Please attach the solar panel to the “head” of the repeller.

Connect spike parts to one another and attach them to the “head” of the repeller as well.




Sensitivity adjustment key → Switch the Sensitivity adjustment key to change the sensitivity of the PIR sensor. Turning the knob clockwise is going to increase the sensitivity and detection distance (even small animals with little movements can activate the unit at the most sensitive position).

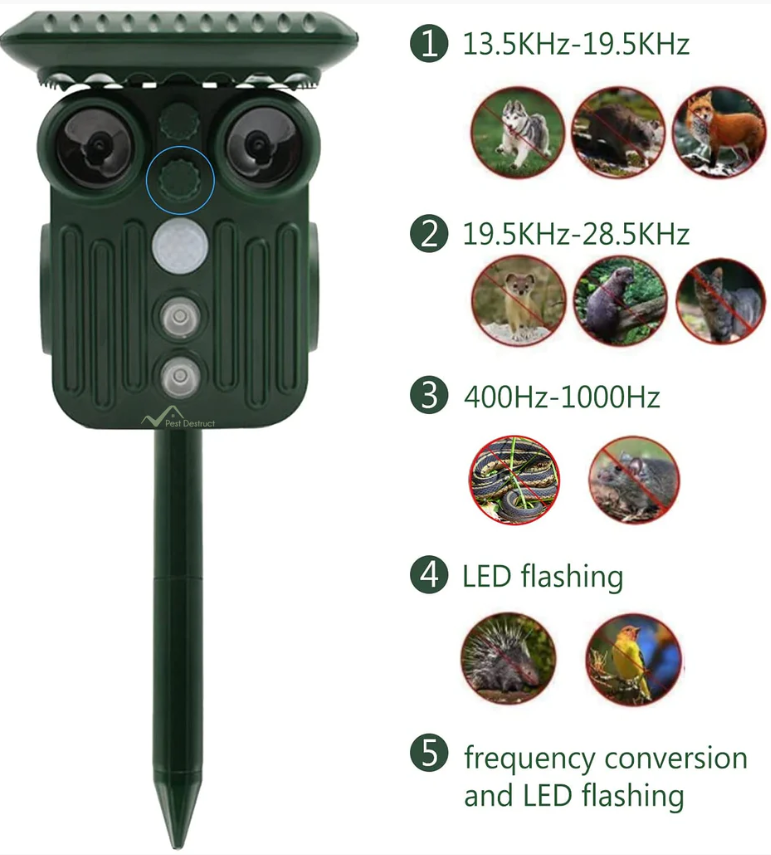

Switch/ gear adjustment key (Frequency dial) →


  1. 13.5kHz - 19.5kHz, repels animals such as rats, dogs, foxes, martens, etc.

  2. 13.5kHz - 28.5kHz,  repels animals such as cats, raccoons, badgers, skunks, etc.

  3. 400Hz - 1000Hz, mainly for snakes, mice, and other animals. Includes vibration of the stake as well.

  4. Strong LED flashes and high-frequency sound is being emitted, can drive away raccoons, birds, boars, crickets, and other animals.

  5. Repels all animals with variable frequency and strong LED flashing. It will shift frequency (1-4), changing it every 5 seconds. Includes lights, sounds and vibrations.



***Important note: To change settings, you must start from position 1 and then go directly to the function you need.


Battery protection


If the rechargeable battery in the product hasn’t been used for an extended period of time (more than one month), the battery’s power may be depleted. It is suggested to charge the battery using the USB cable to fully recharge. A USB cable is included in the package. When charging, the LED light on the device turns blue. Once fully charged the light will turn green. A red light appears when the device is in an operational state.

***Please dispose of the rechargeable batteries properly at a recycling center for used electrical or electronic devices.

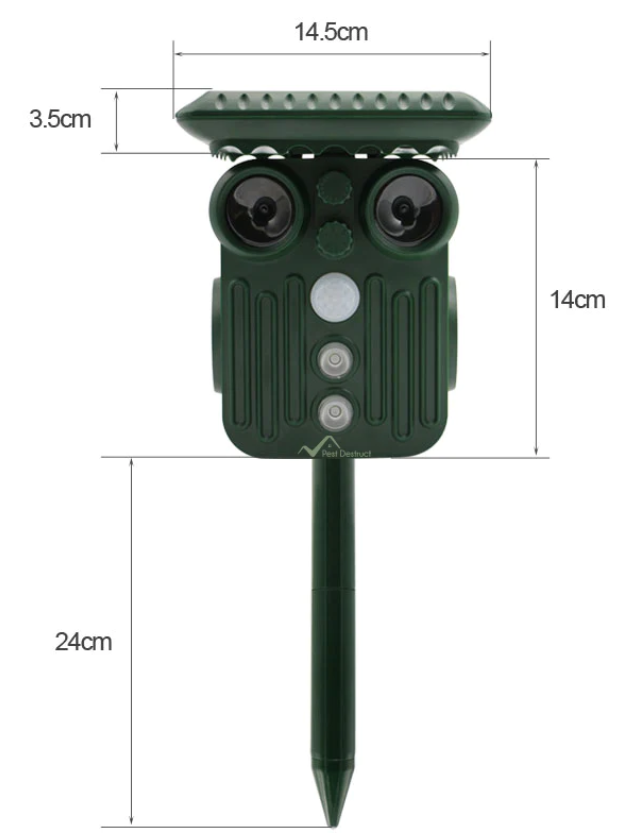

Specifications


  • Power supply: lithium battery (3.7V, 1000MAh) can be recharged by solar panel or USB power adapter (5V/500Ma).

  • Solar panel size: 108mm*82mm 5V220mA

  • Infrared sensor angle: 110 degrees

  • Frequency range: 13.5KHz-28.5KHz/400HZ-1000HZ

  • Detection distance: up to 30ft



What’s in the box


  • Solar panel compartment- 1

  • Repeller’s “head”- 1

  • Vibration stake- 1

  • USB cable for recharging- 1

  • User manual- 1



Maintenance


To clean the device, use a soft cloth dampened with mild soap and water. Do not use harsh chemicals or abrasive cleaning agents that may damage the device.
