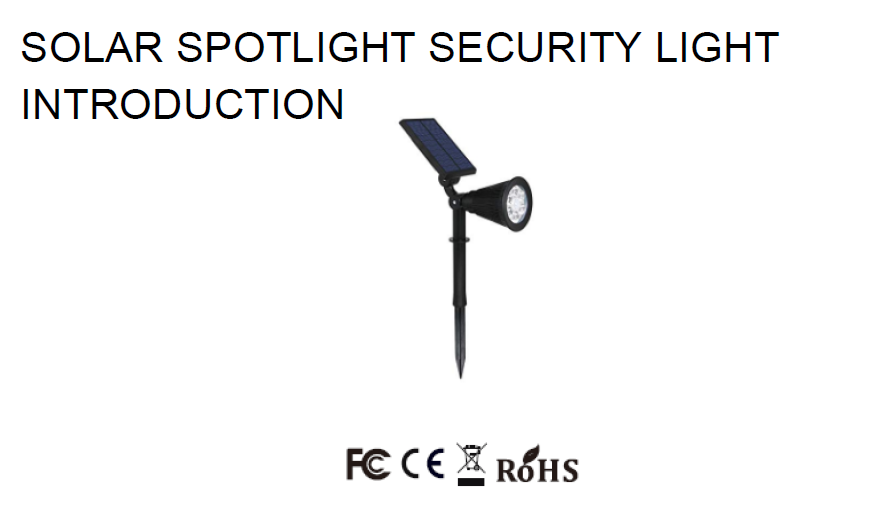

1. Brief Introduction
This product is the 4th generation spotlight, created as an update of the previous versions, upgraded with PIR motion sensor and powerful LED light, up to 300 Lumen output. Motion sensors can detect motion up to 26ft away, 120 degrees detection angle. 6 LED lights to become utterly bright (300 Lumen) for 60 seconds after the motion is detected. Afterward, it will switch to dim light.
The product is water-proof, highly resistant to various weather conditions, and designed for outdoor use. Our solar lights can withstand rain, snow, frost, or sleet as it ensures long-lasting performance under most weather conditions.
The product is solar-powered, it requires no wiring, battery replacements, or professional installation. It has an automated switch – Auto on at night / Auto-off at sunrise. Long working time, with built-in 1 8650 lithium rechargeable battery (2200mAh), meaning it can light up 8—12 hours after it is fully charged.
This product is versatile, with 2 in 1 installation system. Just stick into the ground or use the included screws to mount on the wall; simple to install, hassle-free to use, wall-mounted accessories included in the package. It is perfect for the garden, fences, wall, yard, stair, garage, cellar, attic, front porch, balcony, walkway, driveway, etc.

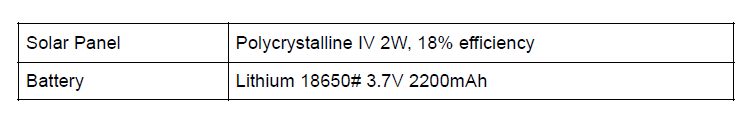

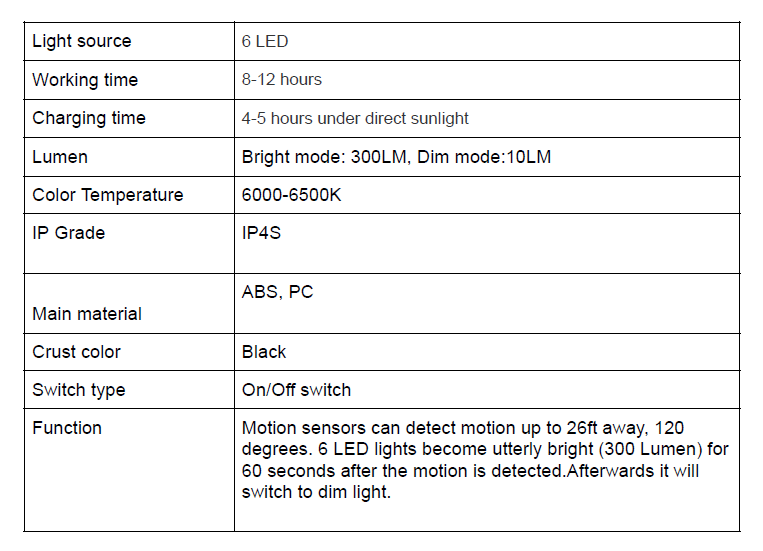

2. Specifications
3. How to use

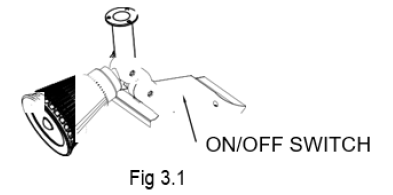

Turn the switch ON- The switch is located at the backside of the solar panel. When you turn on the switch, the lamp will start to work automatically. The product has a built-in light sensor to enable the lamp to turn off light & charge during the day and turn on the light during the night automatically.

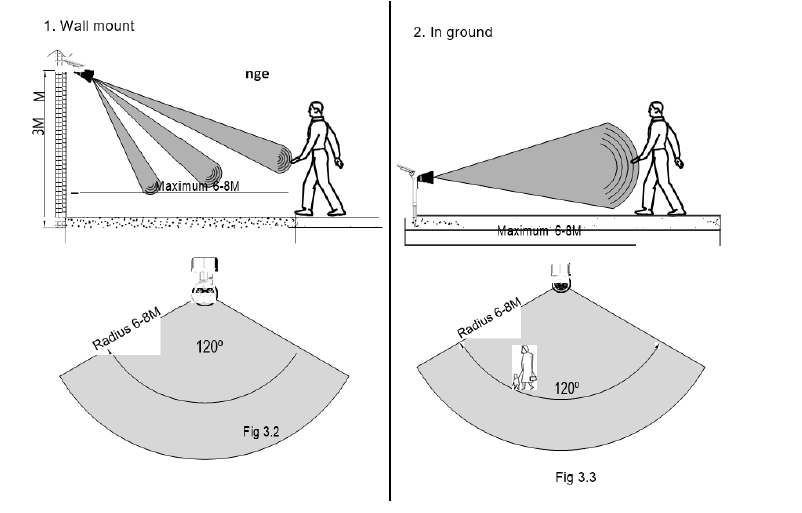

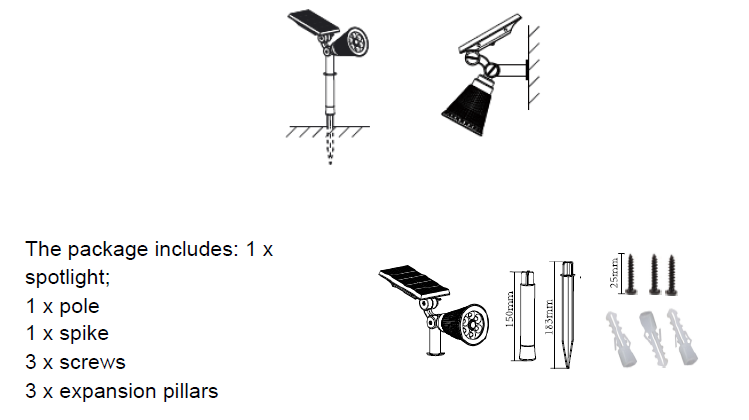

Two Ways of Installation:
1. Wall mount (using base)
2. Into the ground (using spike)
When applicable, please remove the protective film from the solar panel. Attach it to the wall or other outside space with screws directly. Please select a location where the product can have an adequate amount of sunlight.

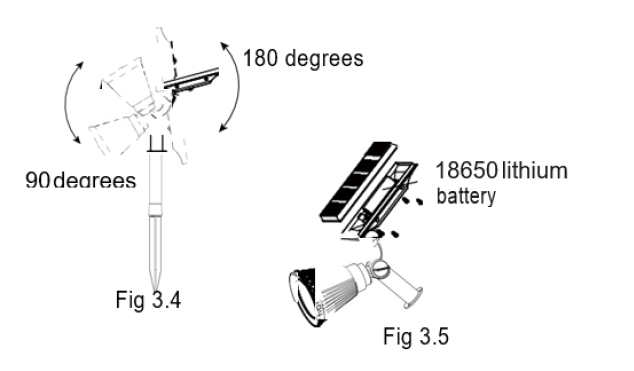

The lamp is adjustable, the solar panel and angle of the light spot can be adjusted in accordance with your needs. The lamp can be adjusted by 90° and the solar panel can be moved by 180°.
4. Battery replacement
The performance of the battery may decrease over time (usually within 1—2 years), please replace the battery as in the picture Fig 3.5.
6. Important notes
● It is very important to install the light in a location that will ensure the product receives full sunlight each day for at least 4—5 hours, away from the shade caused by trees, buildings, etc. Shady locations will reduce the hours of nighttime light.
● Please handle carefully, avoid rough handling and collision.
● Dispose of the used battery properly! DO NOT DISPOSE OF THE BATTERY IN FIRE!
7. Maintenance and troubleshooting
● Before using the solar light for the first time, leave the light under direct sunlight for about 36—48 hours so that the battery can fully recharge.
● Please keep the surface of the solar panel clean, to make sure the product works at its best performance.
● It is very important to install the light in a location that will ensure the product receives full sunlight each day for at l east 4—5 hours, away from the shade caused by trees, buildings, etc. Shady locations will reduce the hours of nighttime light.
● This solar light includes a built-in photo sensor, which detects the level of surrounding natural light and controls when the light will automatically switch on and off. The solar light should be placed at least 2 meters apart from one another and away from other nighttime lights sources as this might keep the solar lights from automatically turning on at dusk.
● The performance of the solar light is dependent on the location, weather conditions, and seasonal sunlight availability. On cloudy days and during winter, the solar light will not receive as much direct
sunlight, resulting in reduced brightness and reduced operating time.
