STEAM CLEANER

WARNING For your own safety, read this user manual carefully before using the device and keep it for good.


SAFETY INSTRUCTIONS …….….….….…….…..….....1

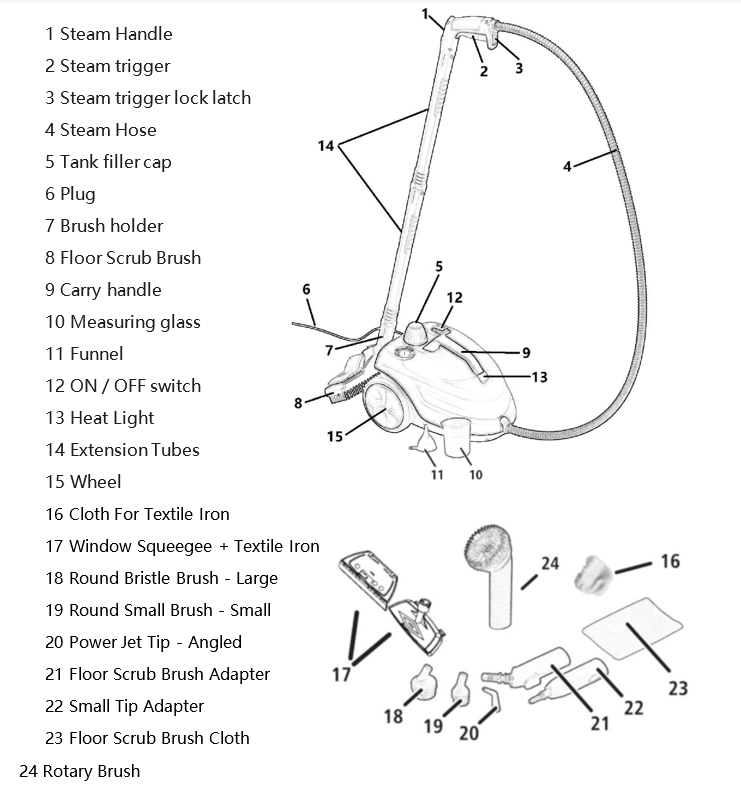

DESCRIPTION ………………………………...….............8

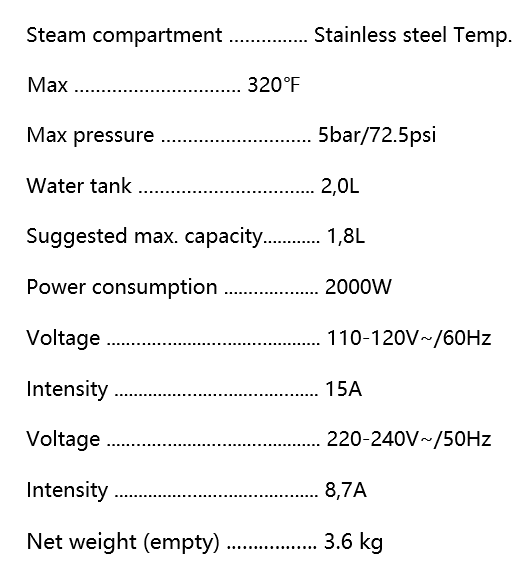

CHARACTERISTICS ….….….….….….………...…....….9

FILLING ………………....….......…...…...…...…...…...... 9

USE .….….….….….….….….….….….…….....….….….... 12

STORAGE …...…...….....….….…..….….…..….…….…. 14

CLEANING .….….….….….….….….….….….….….….... 15

RECYCLING .….….….….….….….….….….….….…........16

FAQ .….….….….….….….….….…....…….….….….......…17

ASSEMBLY OF ACCESSORIES ......…...…...…..…….....20

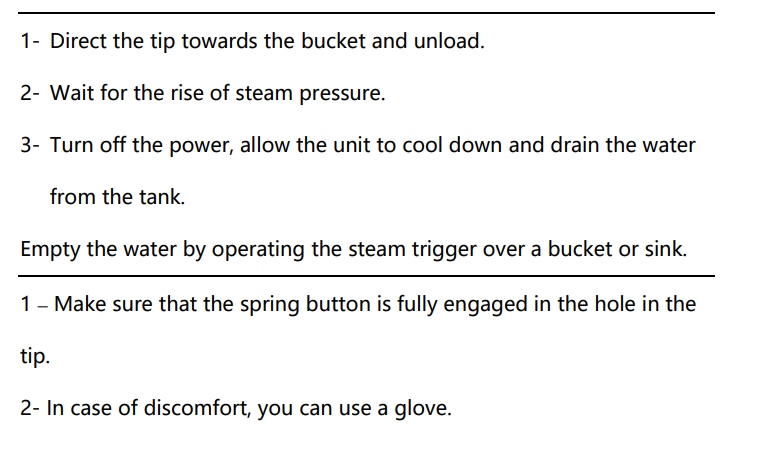

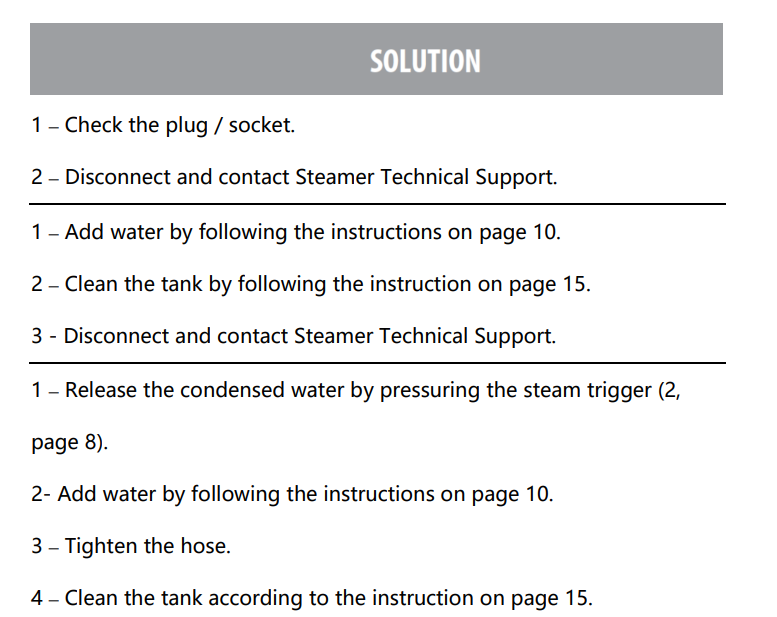

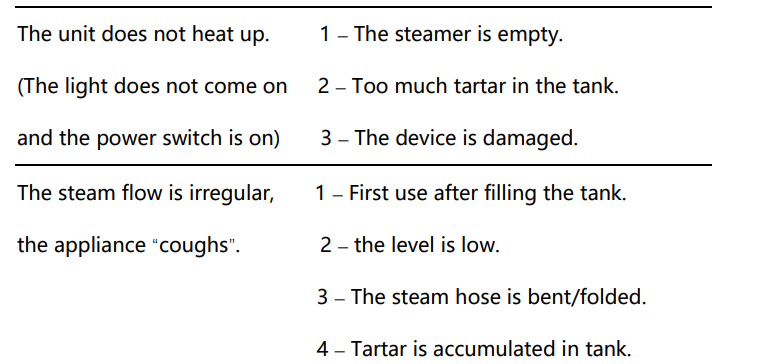

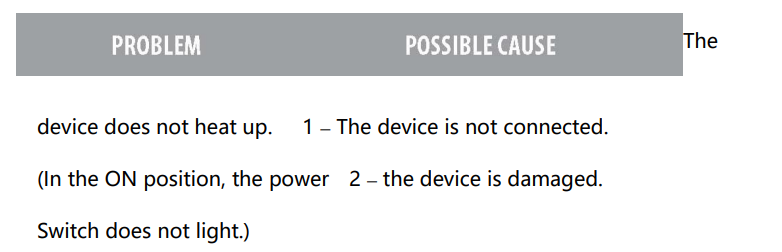

TROUBLESHOOTING ...…..…..…..…..….….….….…....22


SAFETY INSTRUCTIONS


This electrical appliance produces hot steam from pressurized water. There are several dangers in case of misuse. To prevent these dangers and to use the device safely, it is necessary to observe the instructions and instructions given in this manual.

This device is intended for home use. Do not use it in any other way than described in this leaflet. This device can be used outdoors. Protection class: IPX4. It should not be stored outdoors, and should not be exposed to rain, moisture, or dew.


Never touch or point the steam to yourself or others!


•The normal operating pressure is within 5 bar/72.5psi. If the pressure pressure goes over 6.5 bar/95psi, the safety valve inside the filler cap will release steam automatically.


•If excessive steam comes out of the filler cap, turn off the power and disconnect immediately. Stop using the device. For repair, contact a qualified technician.


•Never use the device without water in the tank.


•Always cool Steamer for a few minutes before re-adding water.


•The fill port must not be opened during use, actually the cap can’t be opened when there is any pressure inside the tank.


•Never operate the appliance without tightening the filler cap securely.


•Do not overfill the water tank. The suggested maximum capacity of the Steamer is 1.8 L of water. Excessive filling of the water tank may cause malfunctions, property damage, or injury.


•Never return or tilt the Steamer more than 45 ° when it is energized or if it still produces steam.


•The device does not contain any user-serviceable parts.


•Do not attempt any repairs. Steamers must only be repaired by qualified electricians. If the power cable is damaged, it must be replaced by the manufacturer, its customer service department, or similarly qualified persons in order to avoid danger.


• Do not use in the pool of a pool containing water.


The danger of burning by hot liquid and steam.



•The temperature of the steam is above 100 ℃; therefore, never direct it to people, animals, or electrical appliances. Never place your hand in front of the steam outlet of an accessory to check the temperature, proper operation, or any other reason.


•This device can be used by people with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge if they have been trained and supervised to use this device safely and understand the risks. incurred. Children should not play with the device.


  •This appliance should not be used by children. Keep the device and its cable out of the reach of children. Cleaning and maintenance should not be done by children.

• The steamer is not a toy and should never be used by children.

•Keep hair, loose clothing, fingers, feet, and all body parts away from the jet of steam.

•Do not use Steamer barefoot or with open shoes or sandals.



•The appliance must not be left unattended when connected to the mains. Keep the appliance out of the reach of children when it is fed or cooled.


  • Always disconnect the Steamer when not in use, left unattended, after use and before servicing. Stop all controls before unplugging.


The surfaces of the body may become hot during use.


•Please use the handle provided for transport.


•Do not touch the hose that conducts the steam, it becomes hot during use.


•Check the condition (wear and defects) of the parts and electrical cable of the Steamer before each use.



•Plug the Steamer into a grounded mains socket.



•Do not turn on the Steamer if it is damaged. The device must not be used if it has dropped if there are visible signs of damage, or if there is a leak.



•Do not pull or carry Steamer through its electrical cable; do not use the power cable as a handle; do not close a door on the power cable or pull on sharp edges or corners.


   •Do not expose the Steamer, its electrical cable or plug to rain, or immerse in water or other liquid.



•Do not unplug by pulling on the power cable. To unplug, always grasp the plug, not the power cable.



•Never use the appliance with a damaged electrical cable.


•Never handle the plug or appliance with wet hands. Do not immerse the device in water.


 • Never use a Steamer to clean electrical appliances. Never direct steam or water to appliances containing electrical components, such as inside an oven.




•Keep the power cable away from heated surfaces.


•Do not store or use near flammable materials.


•Do not place the Steamer on or under insulation such as blankets, towels or papers.

•Always store Steamer in a dry place.


•Do not expose the Steamer to frost.


•Use only the original Steamer accessories. There is a danger when using incompatible accessories.


•Store the product indoors, out of reach of children.


•Do not clean this product with a water jet. Use a dry or dampened cloth with soap if necessary.


•Do not use to heat a room.



The suggested maximum capacity of the water tank is 1.8 L of water. Do not overfill. The steam production time is about 35 minutes under normal conditions of use. The heating time is about eight minutes for a full tank.

Empty the water tank after each use. Do not store Steamer with water in the tank. Empty, clean, and dry before storing. Do not expose to frost.



CAUTION: Some fabrics and finishes are not compatible with steam. Do not use steam on leather, waxed floors, synthetic fabrics, velvet, and other fragile materials. When using steam appliances, always refer to the manufacturer’s instructions for use and pre-test at a non-visible location.


WARNING: Never apply steam to windows or mirrors with a temperature below 0 ° C. Thermal shock resulting from extreme temperature deviations can break windows and mirrors in case of contact.







Before filling the Steamer with water, turn it off and unplug it. Make sure there is no more steam by unlocking the steam trigger in the  “on” position.




If the filler cap is opened too quickly, without taking the necessary precautions, there is a very high risk of injury. The metal parts can be extremely hot; avoid contact with the skin. Risk of burns.

NOTE: The filler cap will not unscrew with pressure inside the tank.

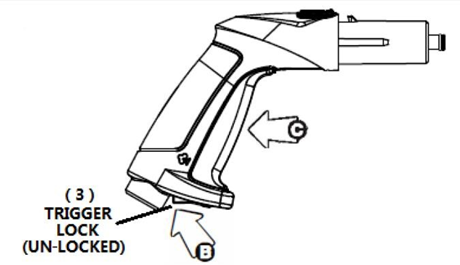

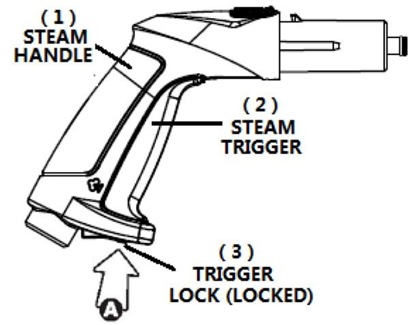

1    Handle Operation. “LOCKED OFF” POSITION The steam trigger (2) is located in the handle and the steam trigger lock latch is located under the handle (3). The lock has two positions: OFF/LOCK and ON / UNLOCK. Press the front of the steam trigger lock latch to lock the steam (A) and LOCK (LOCKED) press the back to unlock (B) the steam.




2    Releasing Steam.              “ON/OPERATING” POSITION When the Heating light (13) goes out, the Steamer is ready for use (maximum pressure of 5 bar/72.5psi). Press the steam trigger lock latch (3) to the ON position (B) and press the steam trigger (C) to obtain a steam jet. Release the

trigger to stop the jet of steam.







3    After use.

Lock the steam trigger in the OFF position (A) to prevent accidental operation.

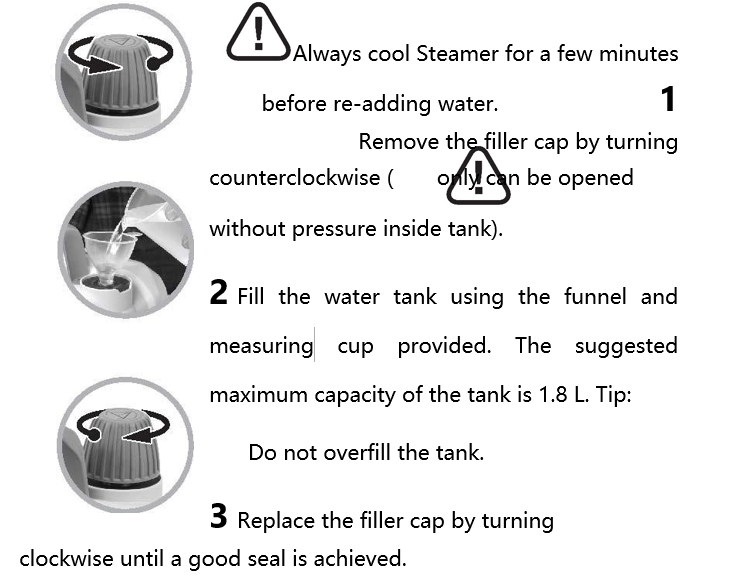

1)    Make sure the Steamer is unplugged and the switch in the OFF position (12).

2)    Unscrew the tank filler cap (5) by turning counterclockwise.


3)    Using the measuring cup (10) and the funnel (11), fill the Steamer with 1.8L of water. (This will produce about 35 minutes of steam.)



4)    Replace the filler cap by screwing it clockwise.

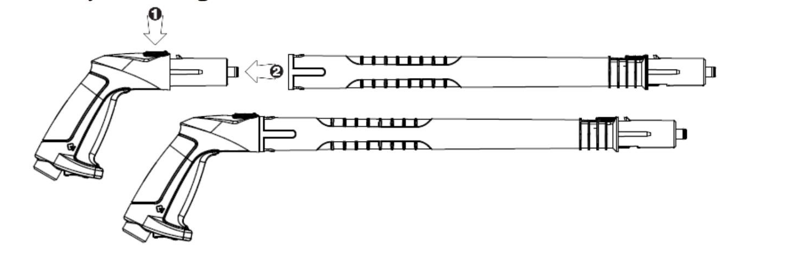

5) Attach the extension tubes to the steam handle (1) to obtain a steam mop or attach the accessory adapter (23).

 6) Connect the appliance and press the switch (12) to the ON position.



 7) Two lights come on. The indicator light (12) comes on to indicate that the power is turned on. The Heating light (13) comes on to indicate a rise in steam pressure in the appliance.



8)    The appliance is ready for use when the steam Heating light (13) goes out and the pressure reaches between 4 - 5 bar/ 58 - 72.5psi depending on the water level in the tank.


9)    During use, the steam Heating light (13) may turn on again. This indicates that the steamer is re-heating to supply power.


10)    If the pressure drops below 1 bar, the steam flow may not be sufficient depending on the accessory used. In this case, release the steam trigger (2) and wait for pressure to reach again between 4 and 5 bar/ 58 - 72.5psi.


11)    When activating the steam trigger (2), water may appear. This is quite normal because at the beginning, the steam takes a little time to arrive and the water condenses in the hose and the extension tubes.

After a few moments, the water will turn into steam and there will be no more cough.



12)    When activating the steam trigger (2), a lot of water can flow. This may be due to a residue of steam from the previous use that has turned into water. Empty this water by operating the steam trigger over a bucket or sink. Once this water has passed, you can use your device quietly.


13)    When using the accessories, the surface you are cleaning may be wet. This is due to the steam that turns into water in contact with this surface. Provide a sponge or cloth to wipe this surface.


 14) After use, press the switch (12) in the OFF position and

disconnect.




Always empty the Steamer after use. Never leave water in the tank when storing the unit.



1    Turn off the power by unplugging the Steamer.


2    Empty all remaining tank pressure by pressing the steam trigger(2).



3    Allow the unit to cool completely (10 minutes minimum).


4    When the appliance is cold, lock the steam trigger and remove the accessories.


5    Empty all remaining water from the tank by tilting the unit to one end. Never leave water in the tank when the unit is not in use or stored.


6    Replace the filler cap and store the Steamer in a safe and dry place.



If the tap water used is very calcareous, it is recommended to use

distilled or demineralized water in the Steamer.  If the use of very calcareous water is unavoidable, it is recommended to clean the water tank regularly.



To clean the water tank and descale, proceed as follows.

Do not use detergent to clean the tank.


1    Mix a 50/50 solution of 250 ml of white vinegar and 250 ml of water. You can use the measuring cup.


2    Pour the solution into the unheated cold tank using the funnel.


3    Leave the solution in the tank for about 30 minutes.



4    After 30 minutes, empty the tank.



5    Repeat steps 1 to 4, if necessary.



6    Rinse well with water.



7    Replace the tank filler cap and store in a safe and dry place.




Always turn off and unplug the Steamer before cleaning.


Do not dispose of electrical appliances through household garbage.


The electrical appliance is in a packaging to prevent any damage during transport. This packaging is a raw material and can therefore be reused later or re-introduced into the raw material circuit. The electric appliance and its accessories are made of several materials, for example, metals and plastics. Eliminate defective components through special waste disposal systems. Inquire at a shop specialized in or in the administration of your municipality!




- Why does water come out of the nozzle?


Steamer generates a large amount of steam that can condense in water in the hose and extension tubes after a period of no use or cooling of the unit. Empty this water by operating the steam trigger over a bucket or sink. Once this water has drained, you can use your device normally.


- No Steam Is Coming Out?


Check the hose is bent or not? if necessary, re-extension. Make sure that the water tank is not empty.


- I can not remove the fill cap?



Make sure the Steamer is completely depressurized. The filler cap is designed can’t be removed while the unit is still under pressure. To do this, empty all residual pressure from the tank by pressing the steam trigger (2). The steam trigger can be unlocked by engaging the steam trigger lock latch (3) in the ON position. Once the pressure is discharged from the tank, the filler cap of the tank can be opened.

The steam flow is irregular, and the appliance “coughs”.  Slight blockage caused by soil or other foreign matter can prevent the flow of steam from arriving continuously. Clean the water tank as shown on page 15.


- Can I use boiled water from my tea kettle?


No. Boiled water concentrates the minerals that form the tartar.  Never use pre-soaked water in the Steamer.


- Can I leave water in the Steamer?


No. Water left in the water tank for a prolonged period may deteriorate the mechanics of the Steamer and deposit limescale. Never leave water in the Steamer; always empty it after use. If the tap water used is very hard, it is recommended to use distilled water to prolong the service life and increase the performance of the Steamer.

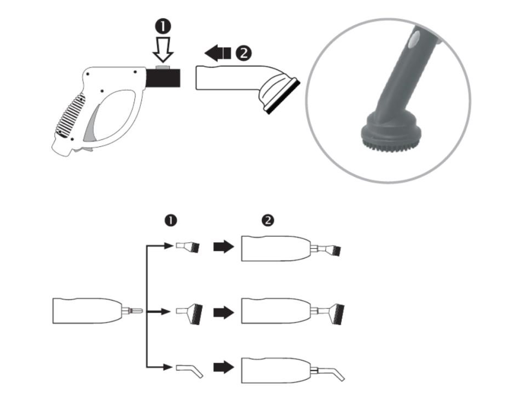

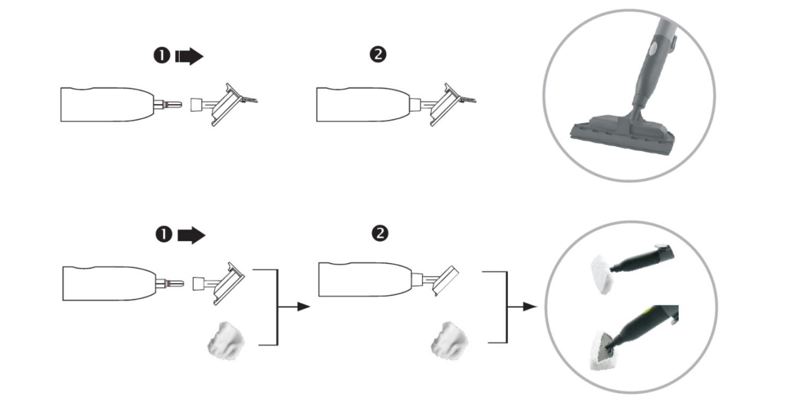

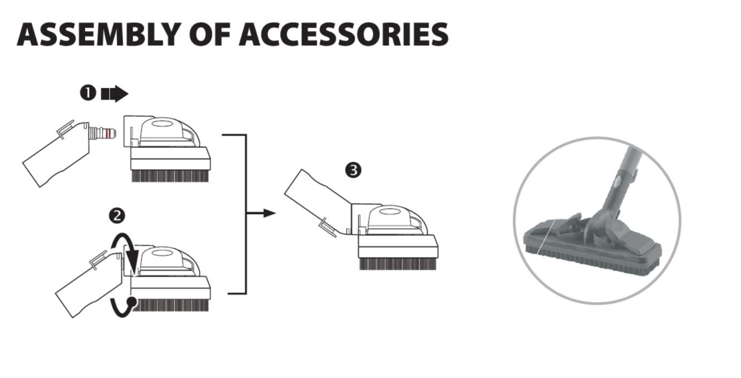

- How do I attach the accessories?


Press the blue button on the handle (1) and insert the extension tubes or accessories. Make sure the button goes back up to lock the accessory in position before use. You should normally hear a light click.

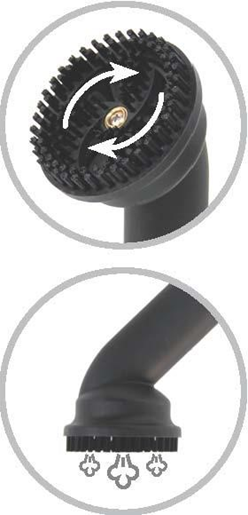

Rotating brush (Optional）the  inner part will rotate due to the high     steam

pressure applied.


Push the rotating brush pipe on the extension tube until the knob fits correctly in the oval opening of the rotating brush pipe.

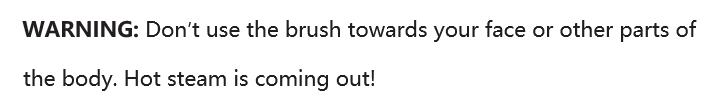

Use the rotating brush to clean all kinds of surfaces with a gentle push and move the brush in the required direction. The rotating part will clean the surface.
