Please read this manual carefully before using it to ensure the product functions to be used correctly.
Please keep this manual for future reference.
WARNING
Do not disassemble, repair or modify this player on your own.
Do not get the player wet or drop it in water (If the player gets wet, do not switch it on).
Do not touch the charger with wet hands.
Do not place the player in a damp, dusty or sooty environment, as it could result in fire or electric shock.
Avoid using your player at high volume levels, as it may result in permanent hearing damage. If you experience ringing in your ears while using the earphone, remove the earphone immediately and lower the volume.
Be sure to back up important data. Please be aware that we claim no responsibility for damage from data loss due to breakdown repair or other causes.
Do not cause an excessive impact on the player by dropping it. Do not place heavy objects on top of the player.
Prevent any foreign particles or dust from entering the device.
Do not spray water on the player. Never clean the player with chemical substances such as benzene or thinner, as it may cause fire, electric shock, or deteriorate the surface.
Do not place the player near magnetic objects as it may cause a malfunction.

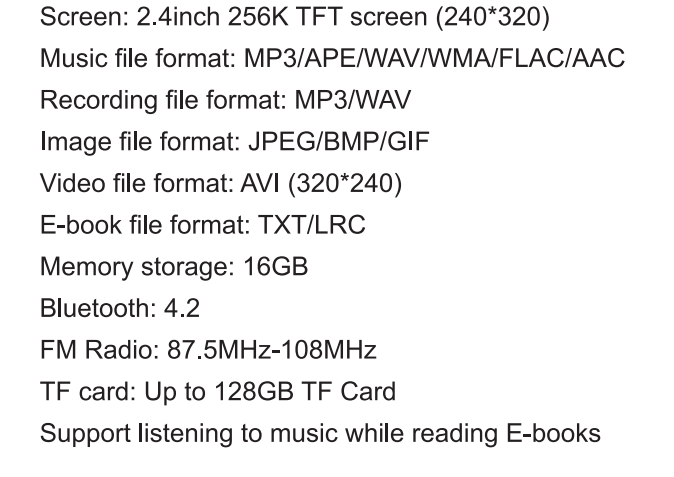

PRODUCT PARAMETERS

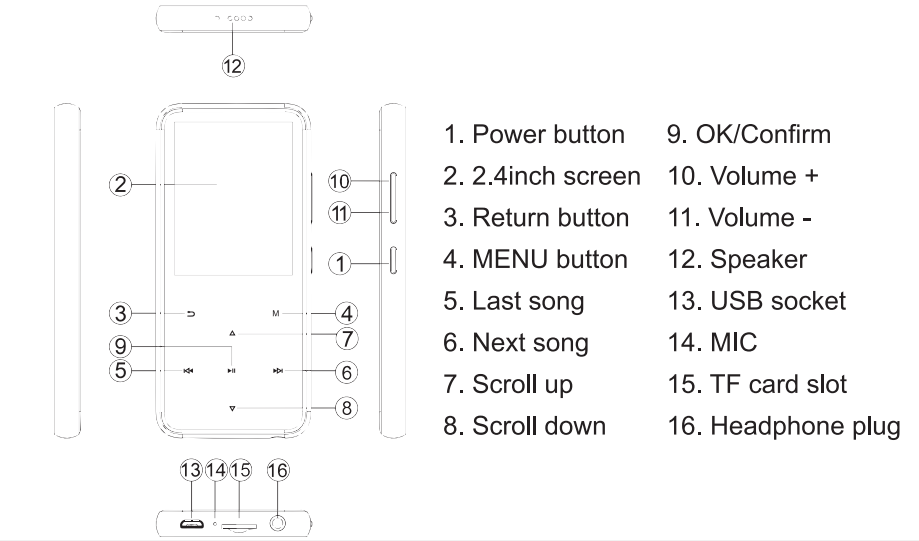

BUTTONS FUNCTION
ON/OFF button: Short press: Screensaver/wake up; Long press: power on/off
+/-: adjust Volume
⏪/⏩ last/next song button
scroll up/down
play/pause/confirm button
Short press to return to the previous level
MENU button
Note:
Do not use any sharp object other than your fingers to operate the touch screen, Otherwise, the touch screen may be damaged.
Do not tap on the touch screen if your fingers are wet.
POWER ON/OFF:
Press the ON-OFF button for 2-3 seconds, the player displays the Boot icon, release the button and the machine will be turned on.
When the player is in the working stage, press and hold the ON-OFF button for 2 seconds and the machine displays the “Bye” icon, release the button and the machine will turn off.
MAIN INTERFACE
There are nine applications: Music, Photo, Movie, E-books, Record, Browser, Bluetooth, Tools (includes Stopwatch, Alarm, Radio), and Settings.
Press and to choose Apps, then press to enter it.
SUB-MENU
After entering the App, press and to browse the menu, then press to confirm. Press to enter the third level menu, and Press to Return or Exit.
MUSIC MODE

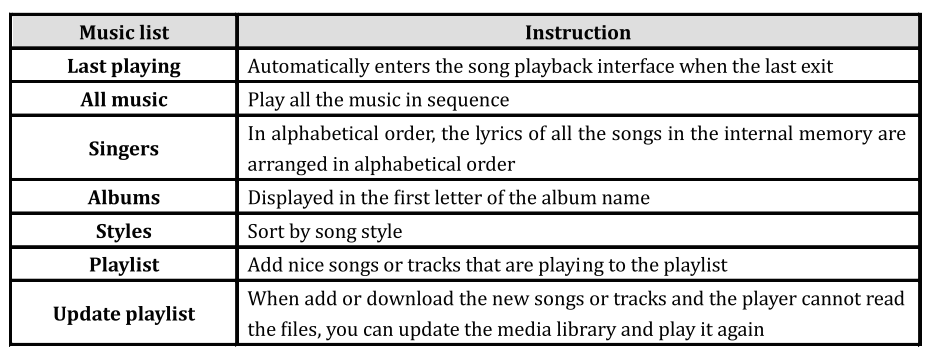

Select “MUSIC” in the main interface, press to enter “MUSIC”, divided by Last Playing, All Songs, Singers, Albums, Styles, Playlist, Update playlist.
MUSIC PLAYER
Select “Music” in the main interface: Pressto the next song, press to the last song. Long-press to rewind or fast forward playback. Press to play/pause.
Adjust volume: Short press to adjust the volume
Lyrics display interface:
This machine supports a sync display in the format of the lyrics file. The title of the lyrics file must match the name of the song.
For example:
If your song is Big Big World.mp3, the title of the lyrics should be Big Big World.lrc
The MP3 player automatically recognizes the same lyrics as the title of the song and displays them simultaneously.
A-B repeat: select one of the A melodies in a song randomly to repeat. The steps are as follows:
When music or voice is playing, press to enter , then press to determine the start point A, and B-spot flashing is displayed on the screen.
Press to determine the endpoint B, the A-B will be displayed on the screen to repeat.
Press to exit A-B Repeat mode.
MUSIC SETTING MENU
When the music is playing, you can Click the to enter the music set sub-menu.
Music sub-menu setting steps: play setting, sound effect setting, add to the playlist, delete from the playlist, press to confirm selection menu.

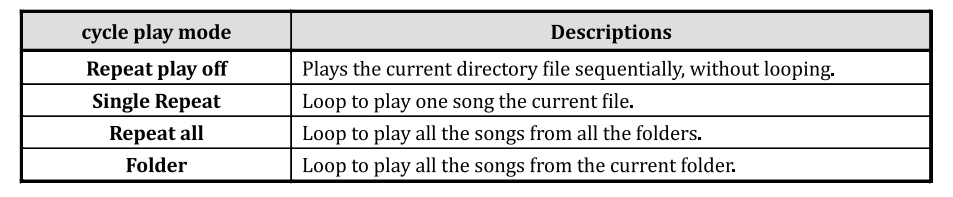

Repeat setting: press to enter the cycle play mode.
Sound mode: Select “Sound mode” and press to enter the desired sound mode, and choose sound effect.
Equalizer: Click “Equalizer”, there will be 6 sound effects for setting, including the default effect.
OFF: the default will be used when “Equalizer” is off.
1. Rock 2. Funk 3. Hip hop 4. Jazz 5. Classical 6. Techno (No Custom)
Variable Speed Playback: Adjust speed as you like.
In the main interface, select the picture, press the to enter, press to exit.
Short press the play button to enter the picture browsing, you can see the list of picture files stored in the directory, short press to select any picture, then short press to browse, press to view the previous or next picture.
Slide show settings: After entering the menu (press the button )select Slide show settings, you can adjust time per slide (2-10s), short press to confirm, press to exit. There are Repeat, Shuffle, and Thumbnails for you to choose from.
Short press the play button to select the corresponding picture to browse. Press the play button again to view all the pictures automatically.
MOVIE
Choose “Movie” in the Main menu
Press to enter video mode, press to the next video, press to the last video. Press to play or pause, long press to rewind or fast forward.
Press the spin button to adjust the volume.
In the playing interface, press to set the playing mode or delete the files you don’t need.
This machine supports video files with *.AVI format and resolution of 320*240.
E-Books
In the main interface, select the E-Books, press to enter the directory list. Under the directory list, there is the main disk directory the card directory (displayed only with TF card), press to enter the directory list.
Select a file and press to start reading. During the reading, you can press the button
to enter the sub-menu. There are add a bookmark, bookmark select, delete a bookmark, page select, play setting, delete e-book, font size, E-book background; during reading, the short button returns to the previous level.
RECORD
Select the record, press to enter the recording, select to start voice recording, press to confirm starting recording.
Press to switch between the stop and continue recording states. During the recording, if you press , the recording will be saved and returned to the main interface.
BROWSER
In the main interface, select Browser, press to enter, options including main disk directory, card directory (displayed only with TF card), then press to enter each folder to select a file to play. Then press key to return to the directory list.
After choosing the document, press , and confirm delete or cancel by button.
BLUETOOTH
Bluetooth switch control: enter the Bluetooth switch state.
Search for devices: When Bluetooth is turned on, you can search for Bluetooth devices (headphones, speakers). When the Bluetooth device name appears, click the play button to select “Connect”. Bluetooth pairing is now complete.
Device list: Disconnects a paired device.
Please note:
Make sure the Bluetooth device is turned on and in a pairing state.
If you cannot enter the search state, firstly delete paired Bluetooth device and then search for the device again.
Please confirm that your Bluetooth device is not connected to other machines.
Playing via Bluetooth: Select the playback content after the Bluetooth connection is successful.
TOOL
Under the main interface, choose Tool, and press to enter, options include Radio, Stopwatch, Alarm clock.
RADIO MODE
Please note: If you want to listen to the FM radio from Bluetooth headphones, you need to connect the wired headphone used as an antenna for receiving signals and you can listen to it via Bluetooth headphones.
Choose “Tool” in the Main menu, press to enter, and select Radio press to exit.
The state is saved after the radio exits, re-entered from the main interface, the radio frequency is the frequency of the last exit.
Press to enter the sub-menu. There are: Start FM radio recording, save, clear station, autotune, Tuner Region, FM recording.
Start FM radio recording:
Select to record the current listening radio content and confirm whether you want to save it;
Save
After searching for the station you want to save, press to enter the sub-menu, select “Save to Preset” and press to save and return to the radio function interface. At this time, the station has been saved. Up to 30 stations can be saved per band.
Clear station
After selecting “Clear Preset” press to confirm. You will see the preset radio station. Press to confirm the selected radio station which you want to delete, press to confirm, then pop-up clear preset dialog box, press to select “Yes” and press to press to confirm the deletion.
Auto-Tune
Select “Auto Search” and press to automatically search and save. After the search is completed, the station list is updated and the list station is played. The search frequency is stepped at 100kHz.
Note: If the current station is a stereo broadcast, it will be displayed on the interface.
*Press there are Autotune, Stations, Manual tune, FM recording for you to choose
Manual Tune:
In the radio function interface, long press to search the radio back or forward automatically, and then stop and play after receiving a radio. If it is a saved program, the saved serial number will be displayed on the screen. If it hasn’t, you need to save the program manually. After the search is completed, press to switch to listen to the saved radio. Press to perform a fine-tuning search, and the search frequency is stepped at 100 kHz.
6. Tuner Region
Common frequency band: 87.5 MHz–108 MHz
Japanese band: 76MHz–90MHz
7. FM recording:
Listen to the saved radio recording file.
SETTINGS
Under the main interface, choose “SETTING” and press to confirm, there are the following:
Language/, Backlight timer, Date&Time Setup, Power saving timer, Sleep timer, Player’s information, Memory space, Factory default, Exit settings.
MENU AND OPERATION
Press the button to choose the functions, and to return to the settings interface.
DISPLAY SETTINGS
After entering, you can set the screen brightness and backlight time, and screen saver.
SHUTDOWN SETTINGS
Power-saving shutdown: This allows the machine to automatically shut down and save power when there is no operation.
Press the key to enter the option, press to select, select “Off” (without manual operation, the machine will not shut down); or set 1 minute, 3 minutes, 10 minutes to respond to the power saving function.
Sleep timer
It is convenient for users to use during the rest of the night.
Press to enter the option, press the to select, after entering, press to adjust the setting value.
Set the shutdown time when there is no operation in the player playback state. The setup time will be cleared after the shutdown. Range 01-99 minutes.
Date&Time Setup:
Press button to choose.
Time settings: Locate the numbers by . Increase or decrease numbers by button. Then press to save. Do the same to set the date.
Language:
Press button to choose language, and then press to confirm. Include many options such as “simplified Chinese”, “Germany”, “English”.
Information:
Press the button to choose. You can view disk and player information.
Format device:
Format the machine. (Please pay attention to the backup files before using this function).
Factory Default:
Press the button to choose Factory Default, used to return the device to factory default.
NOTE: “Format Device” and “Factory Default” will delete all files of this machine and cannot be recovered. Please pay attention to backup files before using them!
CONNECT WITH COMPUTER
Connect the player to the computer when it is turned on. If the green arrow symbol appears in the lower right corner of the computer interface, the player and the computer have been successfully connected. As the picture shows:
Click the green arrow, the system displays “Safely Remove Hardware”, click it to exit safely, or double-click the green arrow to pop up the “Safely Remove Hardware” box, click “Stop”, and then click “OK” to exit safely.
After the connection is successful, the player connection icon is displayed as shown on the picture:
Electricity chart display: , when the battery shows , it should be charged in time, and the charger should be with output voltage 5V, 500mA.
PACKING LIST:
MP3 player 1pc
Earphone 1pc
User manual 1pc
Micro USB charging cable 1pc
Bundle pocket 1pc
3.5mm Aux cable 1pc
Q&A
Q: Why did the reaction speed of the player slow down?
A: After the MP3 player has been used for a long time or when files are deleted frequently, the internal flash memory may be fragmented. You can try to format the MP3 player. Please do a backup to the files you want to keep before formatting.
Q: The MP3 player cannot be turned on.
A: There are several ways to restart it:
Press the “RESET” button, and reopen the MP3 after two minutes.
Please check if MP3 is fully charged.
Please contact customer service for help and troubleshoot
Q: The recording function cannot be used.
A: There are four ways to troubleshoot:
Please check if there is space in the memory and delete some files before recording.
Format internal memory. Please backup the files you want to keep before formatting.
Increase the VOL volume before operating.
Please check if MP3 is fully charged.
Q: Sometimes the battery life is too short.
A: In general, the battery life will vary depending on the temperature environment, and usage. Moreover, due to factors such as increased volume, there will be some differences in actual usage time.
Q: There are some problems with sound, such as Terrible Noise, No Sound.
A: Please check the earphone and make sure the earphone is not damaged. Try to play other music files, if the music file is damaged, it will cause noise.
