XT-01

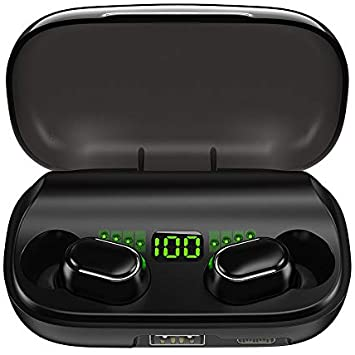

Bluetooth 5.0 Wireless Earbuds with Wireless Charging Case IPX5 Waterproof










  1. Introduction


Thank you for choosing our 5.0 Wireless Earbuds with Wireless Charging Case IPX5 Waterproof TWS. With the ergonomic and in-ear design, noise reduction ear caps bring a secure fit without hurting your ears, enabling a comfortable wearing experience. These earbuds are built to use either one or both as you like for wireless music or hands-free calls.


  1. Pairing



  • DUAL EARBUDS MODE- AUTOMATIC PAIRING

(This mode is suitable for first-time use)


1 . Remove the charging insulation sticker from the back of the dual headphones and put them again into the charging case, activate both sides of the earbuds.


***Note: If the earbuds are not charging after they are placed into the charging case, please kindly use a USB charging cable as it might happen that the charging case is empty and the battery of the charging case needs to be recharged as well.

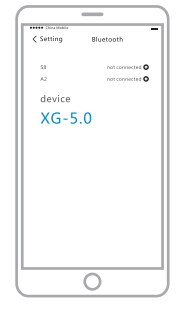

2. Take the two earbuds out of the charging case (both sides of earbuds), they will turn on automatically, and the LED light will flash in blue. You will hear a voice prompt “Power On Pairing”. The earphones can finish pairing after 7-10 seconds.  You will hear a voice prompt “pairing success". The LED of the left earphone will flash in red and blue alternately to enter into the pairing mode, please turn on the Bluetooth function on your phone and select XG-5.0 on your list. You will hear the voice prompt “Connected” once they are paired. Start enjoying music or making phone calls.






***Note: After successful pairing, every time you take earbuds out of the charging case, if the Bluetooth is turned ON on your mobile phone, they will connect to your mobile phone automatically.





  • DUAL EARBUDS MODE- MANUAL PAIRING

(Used when automatic pairing fails)

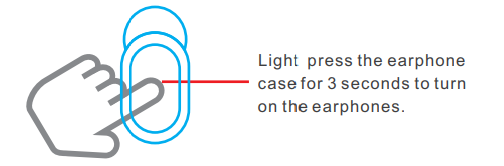

  1.  Press the earbud button for about three seconds until LED starts flashing blue and you hear the voice prompt ”Power ON Pairing”, please expect the pairing process to last 7-10 seconds. After pairing is completed, you will hear the voice prompt: “Pairing Success”.



  1.  The LED of the left earbud will flash red and blue alternately until it enters into the pairing mode. Please turn on the Bluetooth function on your phone and select XG-5.0 on your list. You will hear the voice prompt “Connected” once they are paired. Start enjoying music or making phone calls.



***Note: After successful pairing, every time you take earbuds out of the charging case, if the Bluetooth is turned ON on your mobile phone, they will connect to your mobile phone automatically.



  1. Functions and Operation


TURN ON/OFF- Light press any side of the earbud to turn it ON or OFF


PLAY/PAUSE- Light touch any side of earbuds to Play/Pause










ANSWER/ REJECT PHONE CALL- Light touch the main (Left earbud) if you want to pick up the call, or hang up. Lightly touch the earbuds for about one sec if you wish to reject the call.




PREVIOUS SONG/NEXT SONG


In the music play state, double click the left earbud to switch to the previous song.



In the music play state, double click the right earbud to switch to the next song.



VOLUME UP/ VOLUME DOWN- In the using state, triple-click the left earbud to decrease the volume, and triple-click the right earbud to increase the volume.



WAKE UP SMART VOICE ASSISTANT (Such as Siri)- When the earbuds are under the using state or in standby mode, long-press the main (left earbud) for about 1 sec to wake up the voice assistant.



TURN OFF SMART VOICE ASSISTANT (Such as Siri)- When using voice assistant,  light touch the main (left earbud) for about 1 sec to turn off Siri


***Note: In the dual earbud mode, when you are using earbuds for the purposes of phone call/ talking/ voice assistant, only the microphone on the Left earbud will be active, the right microphone will not be active. As soon as the phone call is finished, the earbuds will go back to dual earbuds mode automatically.






-SINGLE EARBUDS MODE- LEFT EARBUD



First step: Take the Left earbud out of the charging case, it will enter into the pairing state automatically.


Second step: Please turn on the Bluetooth function on your phone and select XG-5.0 on your list. At the same time, the right earbud should be placed into the charging case to get charged and it should be turned off.



  • SINGLE EARBUDS MODE- RIGHT EARBUD


First step: Take the Right earbud out of the charging case, and long-press for about three seconds. It will enter into the pairing state automatically.



Second step: Please turn on the Bluetooth function on your phone and select XG-5.0 on your list. At the same time, the left earbud should be placed into the charging case to get charged and it should be turned off



  1. Charging


  • EARPHONES

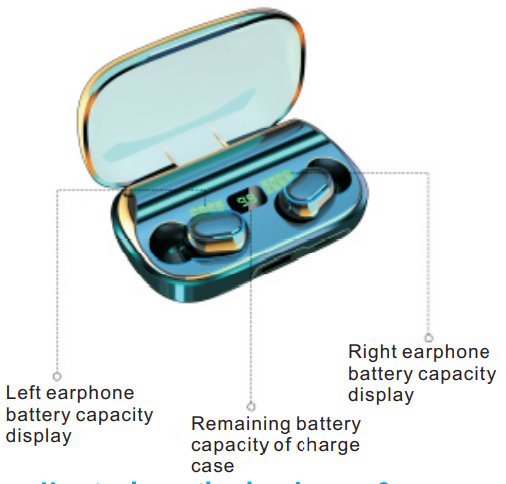

After both earphones are placed into the charging case, the light of the LED display screen which shows the battery amount will flash in green, the quantities of green lights on the LED display screen will increase from one to four gradually, then will decrease from four to one. If the quantities of green lights are always changing, it means the earphones are charging. When the four green lights are shown on the LED display screen, it means the earphones are fully charged, the green lights on the LED display screen, and the lights on earphones will turn off automatically.

  • CHARGING CASE


The portable charging case with a built-in 2200mAh battery will give you the ability to charge on the go. Please use the power cord supplied to charge the charging case. During the charging, the led display will show the level of power, such as 88 means

the power is 88%. When charging is completed, the indicator light will turn off.



  1. Product Specifications


Model name:  XT-01

Version:  5.0+EDR

Charging Voltage:  DC 5V

Battery capacity:  50mAh Case: 2200mAh

Work range:  32 ft (10m)

Battery Voltage:  3.7v-4.2V

Charging time:  0.6h

Talk time: 4h

Standby time: 120h

Music time: 4h

Output Mod: Type-C

Input current: 5V/1000mah

Bluetooth 5.0

Color: Black

Waterproof grade: IPX5



  1. Important notes


For first-time use, please fully charge this product.


Please do not disassemble or remodel the product, it will cause a short circuit which might cause fire or completely damage the product.


Don’t use earbuds at temperatures below 0 °C or above 45 °C.

Avoid using the device near children, animals, or people with photosensitivity due to strong flashing lights.


Don’t use earbuds under thunderstorms, it may cause device malfunction and increase the risk of electric shock.


Don’t clean the product with oil or other volatile liquids.


Do not let the device get wet with liquids.


Do not use the device for a long time as it may cause hearing damage, arrange the use time reasonably.
