Wireless Charger 6in1

User Manual







Basic Information

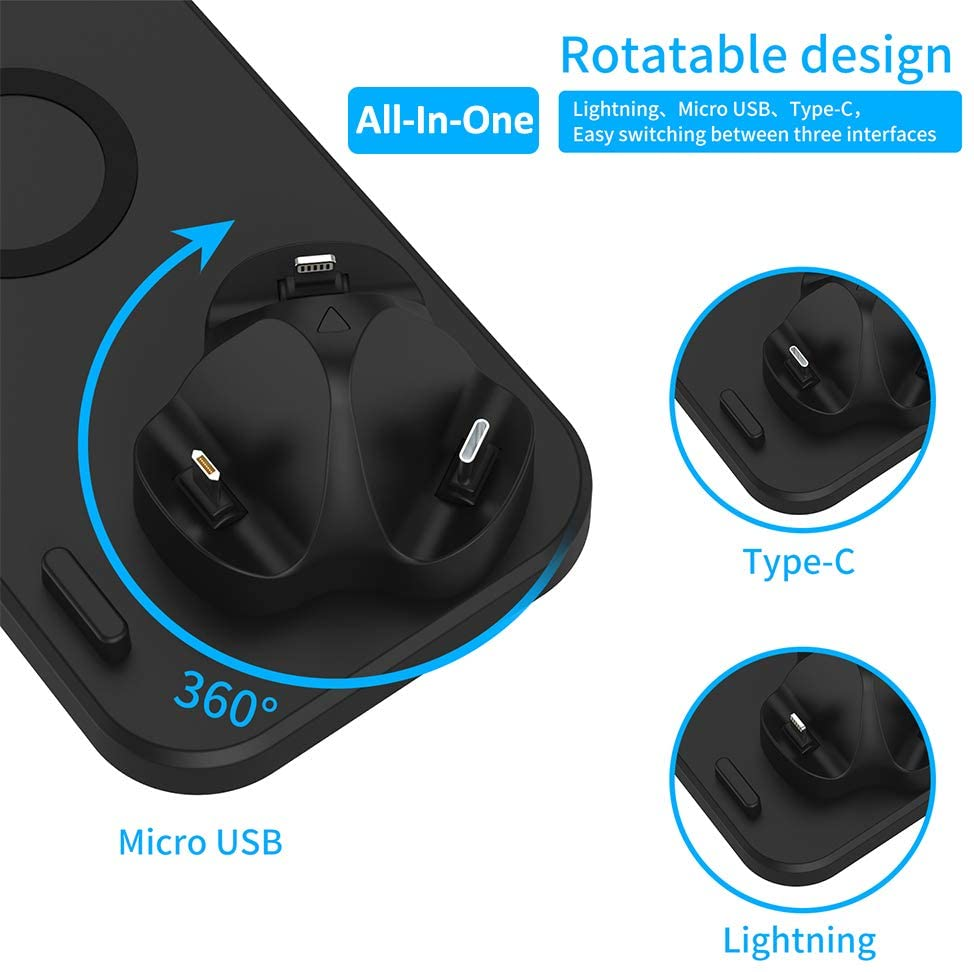

Thank you for choosing our Premium Zone Wireless Charger 6in1 Fast QC 3.0 Adapter Included. It will help you charge your phone, Apple Watch, AirPods or Apple Pencil at the same time and easily switch between 3 interfaces: Light, Micro USB and Type-C. Made of premium ABS plastic, modern design with 90° rotatable area of switching interfaces and 90° foldable area for easy storage, this charger has the additional function as a phone stand.

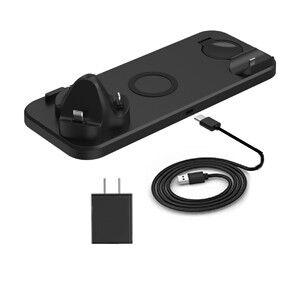

The box contains 6 in 1 fast charger, USB cable, Fast QC 3.0 Adapter (optional), user manual.




Product Introduction

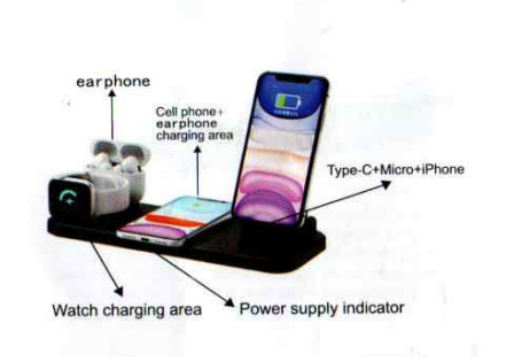

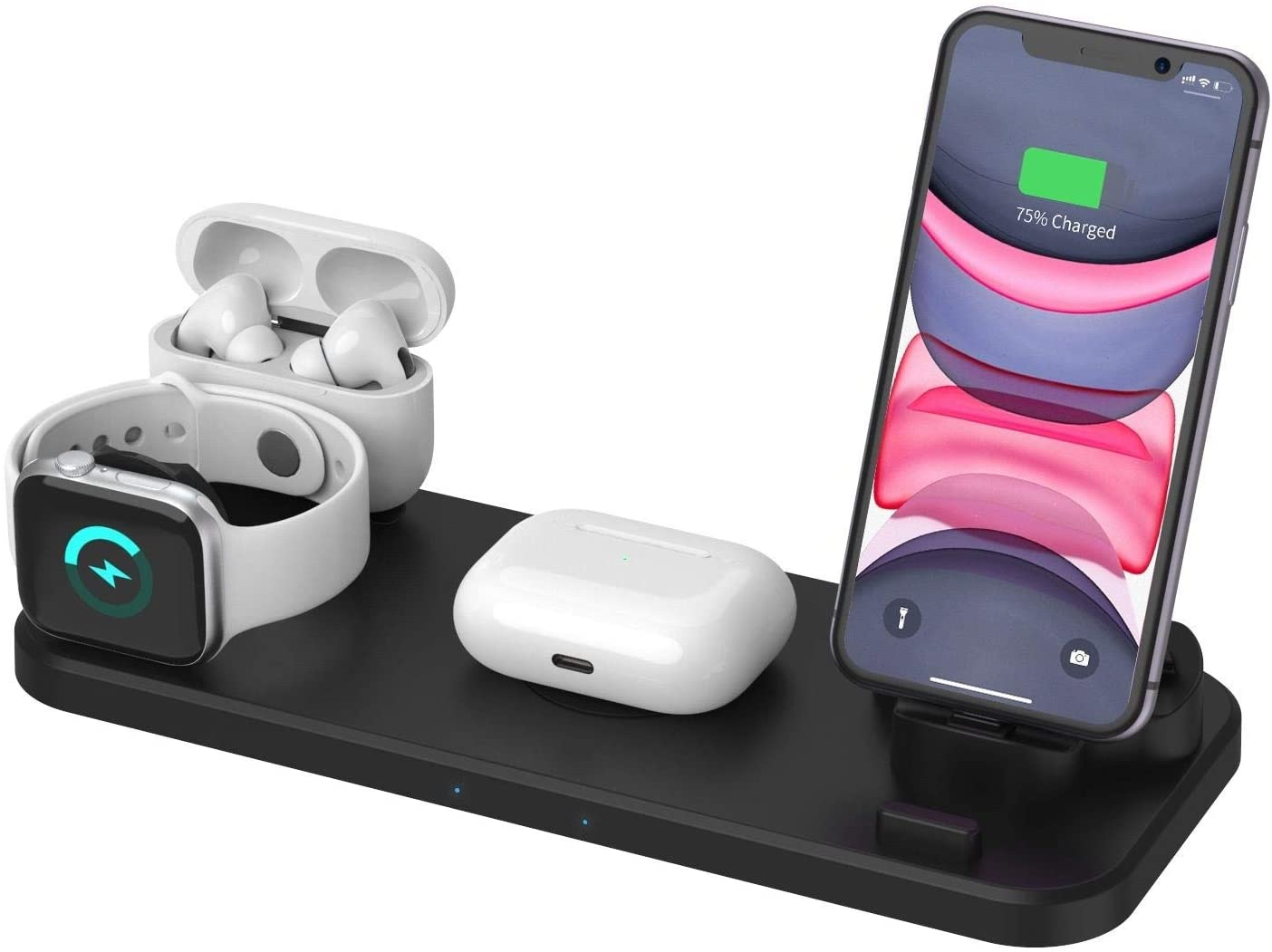

The device has 6 charging areas: an area for charging earphones, a watch charging area, a cell phone and an earphone charging area+ a 360° rotatable charger dock for iPhone/ Micro USB/ Type-C phone.


Unpack the box content, plug the USB cable into the device and recharge it with our fast QC 3.0 Adapter.


The device has a LED light indicator, at the state of charging, the light will be blue, after the phone has been recharged, the charging plate will fall into a standby mode and the light will be green.



Specifications:

Input: 5V/2A, 9V/2A

Size: 6.6 x 5.9 x 0.9 inch

G.W.: 0.4 lbs

Mobile power: 5-7.5-10W

Headphone Power: 3W

Power of watch and touch pen: 2W

Charging frequency: 110-205khz

Charging distance: 0.07 to 0.3inch

Package: neutral box

Transmission Distance: 2-10mm

Certificate: FCC, RoHS, EMC











Compatibility


Universal Compatibility with:


- 7.5W for iPhone 12/12 Pro/12 Mini /12 Pro Max/ 11/11 Pro/Xs/ XR /X/8 /8 Plus


-  10W for Samsung Galaxy S20/Note 10/Note 9/Note 8/S10/S9/S8/Edge and more


- 3W for headphones: AirPods, AirPods Pro, and other earbuds


- 2W power for the watch and touch pen


- 5W for any other Qi-enabled devices


*automatically switches between 10W and 5W charging modes depending on the power needs of your device, ensuring optimized charging


Notes


Please pay attention to the following issues, otherwise, it may cause abnormal charging, high charging temperature, intermittent charging, or not charging at all.

  • Please put the phone/watch at the center of the charging area

  • The available charging distance is 2-10mm, please don't wear a protective case that is over 5mm thick

  • Please put the phone/watch at the center of the charging area

  • We recommend using QC2.0/3.0 quick charger adapter (9V/2A), because the device charges two devices at the same time. 5V/2A charger would provide a slow charging speed

  • The watch has temperature control. When the temperature reaches 40 degrees, it will stop charging automatically. If the temperature is normal, it will continue to charge

  • Please remove metal or magnetic objects from the case when charging, as they may interfere

  • Please don’t charge in high temperatures or steamy environments to avoid damage to the circuit

  •  Keep away from children
