Car Mount Charger

Fast Charging Car Phone Holder


  • How do I install it?


Step 1: Press the Car Outlet button (1) to place the clamps of the mobile phone holder on the air outlet of the car (different cars can be fitted according to rotation).

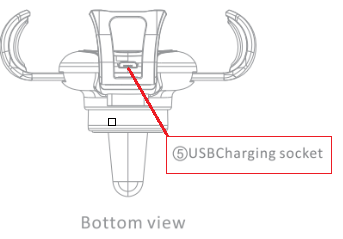

Step 2: Plug one end of the USB charging cable into the car cigarette lighter and one into the USB charging port (5) of this product.

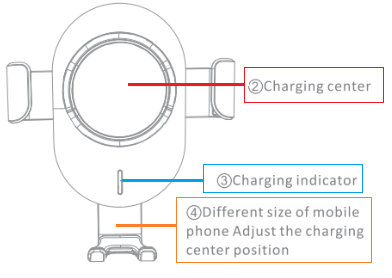

Step 3: Fully connect the mobile phone to the charging centers (2) and adjust (4) charging centers according to the size of the mobile phone lighter and one end on the product jack.

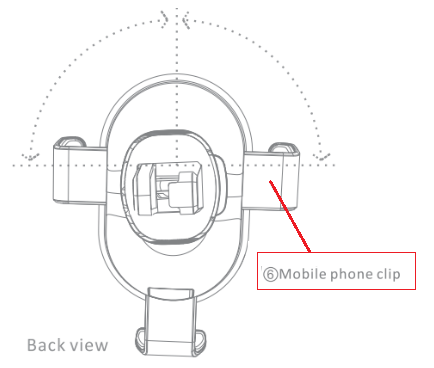

Step 4: According to the need to adjust the (6) mobiles parts (around can rotate 90°).

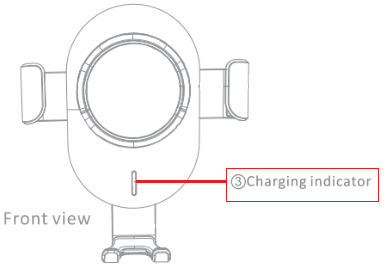

***Note: the charging indicator light (3) is in the standby state, while the red light is in the charging state of the mobile phone.




  • What devices are compatible?


  • 10W Fast Wireless Charging Model: Samsung Galaxy S9 Plus/S9/S8 Plus/S8/S7/S7 Edge; Note 9/ 8/7 ( Except for Huawei Mate 20 Pro, Google Pixel 3/Pixel 3 XL, LG V30/G7).


  • 7.5W Fast Wireless Charging Model: iPhone Xs/ Xs Max/ XR/ X/ 8/ 8 Plus.


  • 5W Standard Charging Model: Samsung S6/S6 Edge, Note 5, and other Qi-enabled devices like Nexus 4/5/6/7, Nokia Lumia 820/920/930/1020/1050/1520; Blackberry PRIV, LG G2/G3/G4/V10/V20, SONY Z3V/Z4V.


  • Huawei Mate 20 Pro, Google Pixel 3/ Pixel 3 XL, LG V30/G7 are at the 5W Qi spec that serves as the base Qi charging speed, so it is standard wireless charging at 5V/1A.




  • Does it protect my phone from overcharging?


Yes, with built-in over-voltage, under-voltage, temperature control, surge protection and short-circuit prevention features, the charger will automatically interrupt the charge when fully charged.






  • Can it charge a phone with a case?


Yes, it will charge with the phone case as well. Please, remove the magnetic or metal accessories from the phone case when charging.
