Wireless Charger 4in1

User Manual








Basic Information

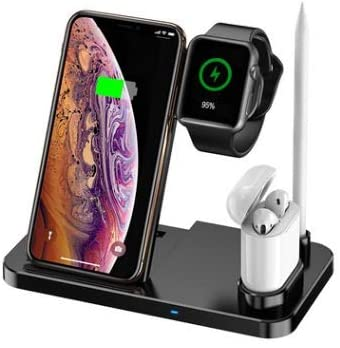

Thank you for choosing our Premium Zone Wireless Charger 4in1 Fast QC 3.0 Adapter Included. Our product will help you charge your phone, Apple Watch, AirPods, or Apple pencil at the same time. It has advanced automatic control technology with built-in safeguards against overcharge, overcurrent and overvoltage protection, temperature control, foreign object detection.


The box contains 4 in 1 fast charger, USB cable, Fast QC 3.0 Adapter (optional), user manual.



Product Introduction

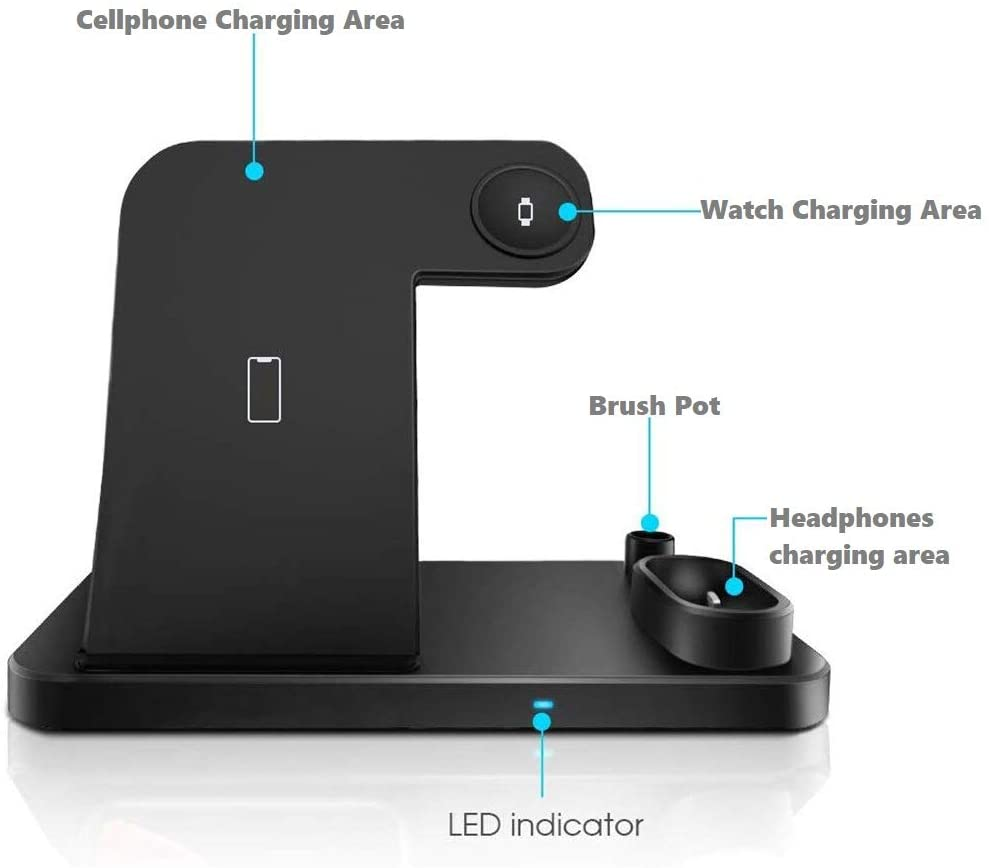

The device has a cellphone charging area, watch charging area, brush pot, and headphones charging area.


Unpack the box content, plug the USB cable into the device and recharge it with our fast QC 3.0 Adapter.


The device has an adjustable magnetic metal support plate, which enables you to adjust your charger to an ideal angle. It will charge your phone vertically or horizontally.





Specifications:

Size: Approx. 6.6 x 5.9 x 0.9 inch

G.W.: 0.5 lbs

Mobile power: 5-7.5-10W

Headphone Power: 3W

Power of watch and touch pen: 2W

Charging frequency: 110-205khz

Charging distance: 0.07 to 0.3inch

Package: neutral box

Transmission Distance: 2-10mm

Certificate: FCC, RoHS, EMC











Compatibility


Universal Compatibility with:


- 10W for Samsung Galaxy S10/S10+/S9/S9+/S8/S8+/S7/7+, NOTE 9/8/7;


- 7.5W for iPhone 12/12 Pro/12 Mini /12 Pro Max/ 11/11 Pro/Xs/ XR /X/8 /8 Plus


- 2W for iWatch Series 5/4/3/2/1 and Touch Pen


- 3W for Airpods, Headphones


- 5W for any other Qi-enabled devices


*automatically switches between 10W and 5W charging modes depending on the power needs of your device, ensuring optimized charging


Notes


Please pay attention to the following issues, otherwise, it may cause abnormal charging, high charging temperature, intermittent charging, or not charging at all.


  • The available charging distance is 2-10mm, please don't wear a protective case that is over 5mm thick

  • Please put the phone/watch at the center of the charging area

  • We recommend using QC2.0/3.0 quick charger adapter (9V/2A), because the device charges two devices at the same time. 5V/2A charger would provide a slow charging speed

  • The watch has temperature control. When the temperature reaches 40 degrees, it will stop charging automatically. If the temperature is normal, it will continue to charge

  • Please remove metal or magnetic objects from the case when charging, as they may interfere

  • Please don’t charge in high temperatures or steamy environments to avoid damage to the circuit

  •  Keep away from children
