Wireless Charger 3in1

User Manual








Basic Information


Thank you for choosing our Premium Zone Wireless Charger 3in1 Fast QC 3.0 Adapter Included. It will help you charge your phone, Apple Watch, and AirPods at the same time. Our premium dual charging pad with a 360° rotatable watch charging area owns advanced technology that detects all connected devices at once, adjusts the output accordingly, and ensures a constant voltage to minimize charging time.


The box contains 3 in 1 fast charger, USB cable, Fast QC 3.0 Adapter (optional), user manual.



Product Introduction

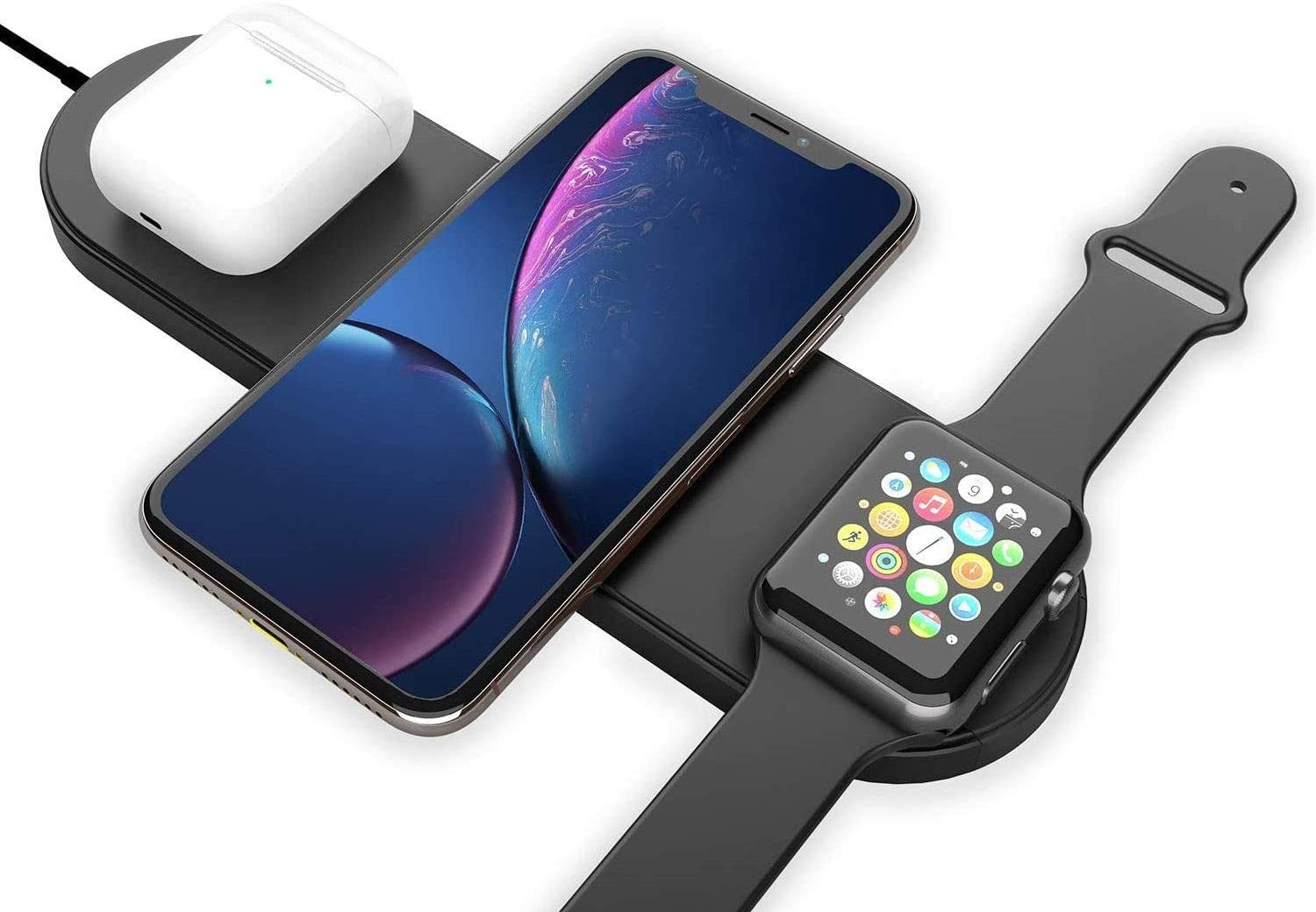

The device has 3 charging areas, among which one of them is 90° rotatable, suitable for watch charging. It can charge 2 mobile devices and 1 smartwatch simultaneously, or a mobile device, a smartwatch, and AirPods.


Unpack the box content, plug the USB cable into the device and recharge it with our fast QC 3.0 Adapter.






Specifications:

Size: 8.2 x 2.5 x 0.3 inch

G.W.: 0.4 lbs

Mobile power: 5-7.5-10W

Headphone Power: 3W

Power of watch: 2W

Charging frequency: 110-205khz

Charging distance: 0.07 to 0.3inch

Package: neutral box

Transmission Distance: 2-10mm

Certificate: FCC, RoHS, EMC











Compatibility


Universal Compatibility with:


- 7.5W for iPhone 12/12 Pro/12 Mini /12 Pro Max/ 11/11 Pro/Xs/ XR /X/8 /8 Plus


-  10W for Samsung Galaxy S20/Note 10/Note 9/Note 8/S10/S9/S8/Edge and more


- 3W for headphones: AirPods, AirPods Pro, and other earbuds


- 2W power for the watch


- 5W for any other Qi-enabled devices


*automatically switches between 10W and 5W charging modes depending on the power needs of your device, ensuring optimized charging


Notes


Please pay attention to the following issues, otherwise, it may cause abnormal charging, high charging temperature, intermittent charging, or not charging at all.


  • The available charging distance is 2-10mm, please don't wear a protective case that is over 5mm thick

  • We recommend using QC2.0/3.0 quick charger adapter (9V/2A), because the device charges two devices at the same time. 5V/2A charger would provide a slow charging speed

  • Please remove metal or magnetic objects from the case when charging, as they may interfere

  • Please don’t charge in high temperatures or steamy environments to avoid damage to the circuit

  •  Keep away from children
