2.4G Wireless Vertical Optical Mouse-3  Rechargeable- Black Right Hand



USER MANUAL






  1. INTRODUCTION


Thank you for using our Premium Zone 2.4G Wireless Rechargeable Vertical Optical Mouse. Our wireless mouse has a comfortable shape and grip, gently curved sides, and a broad palm area. Its vertical form supports your hand for pleasant control all day long. The design encourages healthy neutral "handshake" wrist and arm positions, designed to reduce forearm twisting and the resulting repetitive stress and pain. No finger contortions are needed to operate the easy-to-reach buttons.







  1. PRODUCT AND USAGE


  • 1200/1600/2400 DPI


High-Resolution Optical Tracking Technology provides more sensitivity than a standard optical mouse.


  • WIDE COMPATIBILITY


Windows 10 / 8 / 7 / Vista / XP / 2000, Linux, Mac OS X. Once you get used to the ergonomic mouse, you will love it so much.


  • LONG WORKING DISTANCE


2.4GHz wireless technology ensures controlling your laptop, desktop computer, or home theatre PC from up to 32 ft. away




  • This mouse contains a Built-in 400mA battery, when fully recharged, it can be used for up to 10 days before you need the next recharge. Please recharge prior to first use.

  • Remove the nano receiver from the bottom of the mouse, and insert it into the computer’s USB port. The driver will automatically install.

  • Press any button to activate the mouse

  • Press the DPI switch to shift to the DPI level appropriate to your environment (this step is optional)


If left idle, the mouse will enter sleep mode. Please press any button to activate the mouse again.

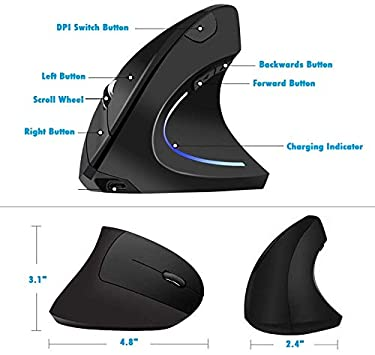

Buttons:


  • Scroll wheel

  • Left Button, Right button

  • DPI Switch button

  • Next page button, a previous page button

  • LED bar - charging indicator



  1. PRODUCT SPECIFICATIONS


Material: ABS

Gear: 3rd gear ( 1200/1600/2400 DPI)

Remote control distance: 33ft

Size: 4.8 x 2.4 x 3.1 Inch

Key position: 6 keys (left and right keys, roller, forward and backward, DPI)

Connection mode: wireless 2.4G

Battery: Built-in 400mA battery

Features: automatic power off; power saving mode (power is cut off completely) after idle time, press right or left button for it to wake
