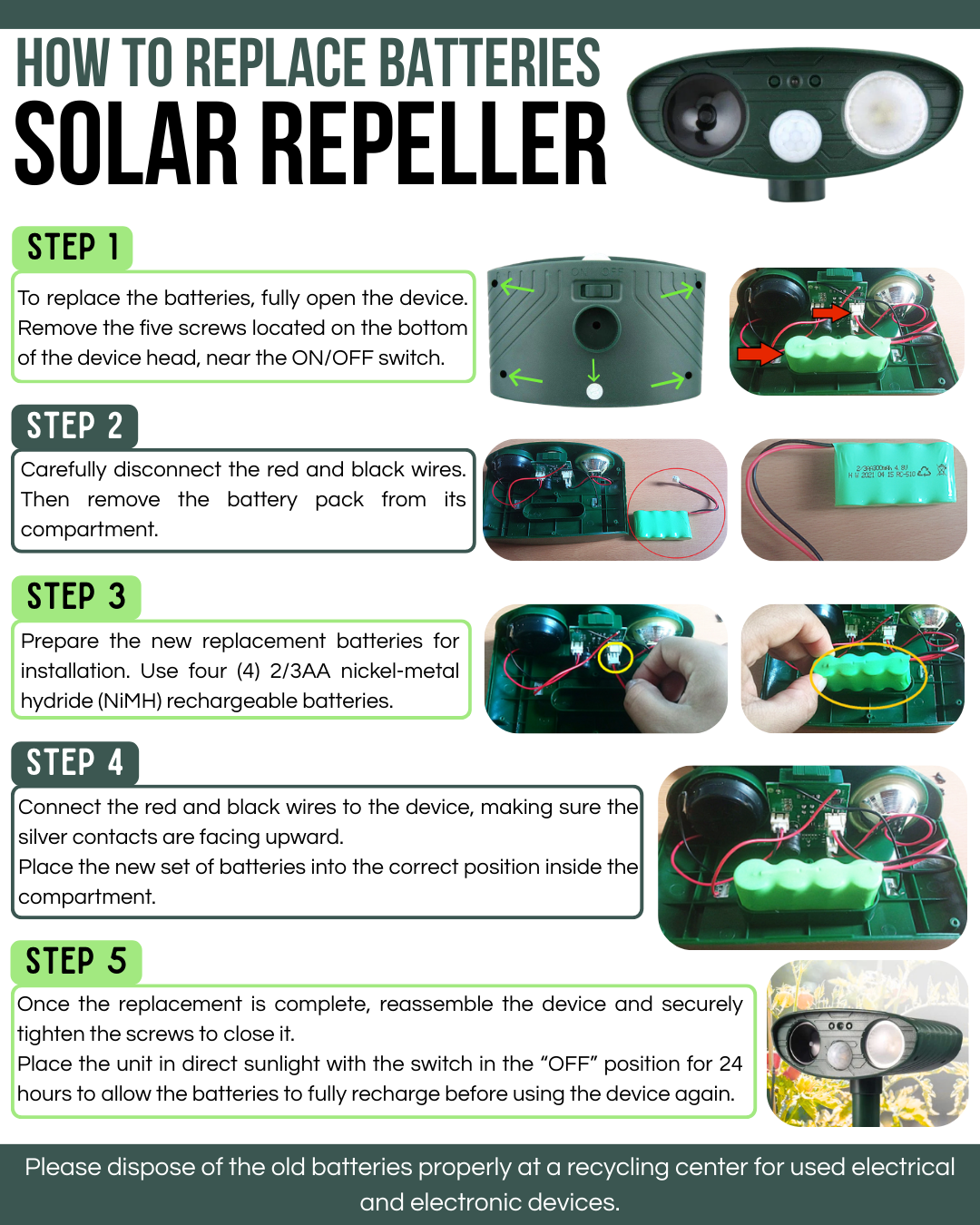

How to replace batteries

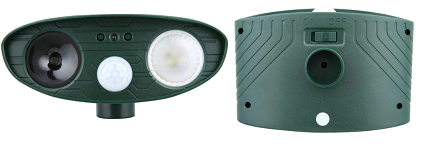

Outdoor Ultrasonic Animal Repeller








To replace the batteries of the Outdoor Ultrasonic Animal Repeller please follow the instructions described below.


Please dispose of the old batteries properly at a recycling center for used electrical and electronic devices.

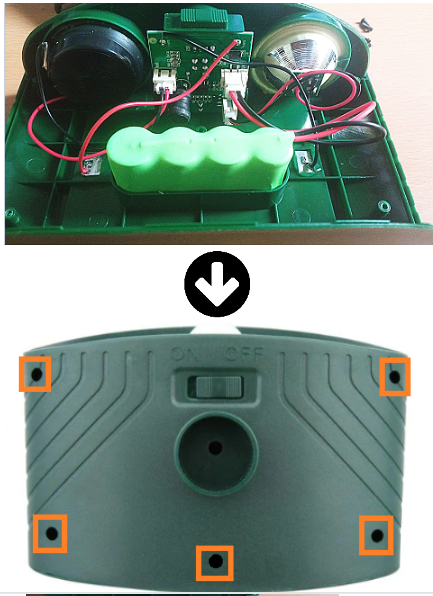

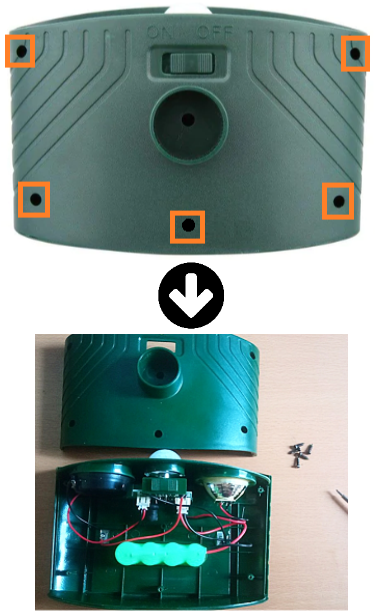

Step 1: To replace the batteries it is necessary to fully open the device,  the 5 screws are on the bottom of the head of the device, where the ON/OFF switch button is.

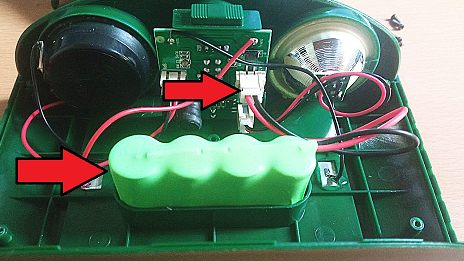

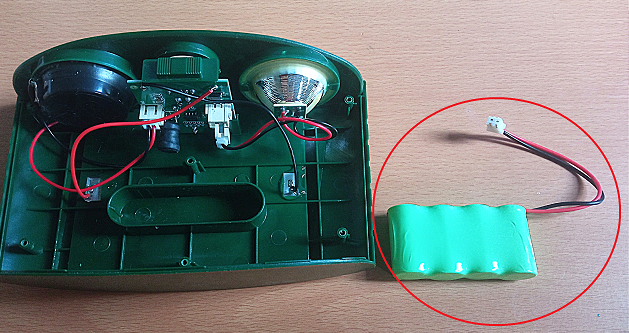

Step 2: Disconnect the red and black wires, and then take out the set of batteries from its position.








Step 3: Prepare the new replacement set of batteries to install on the device.

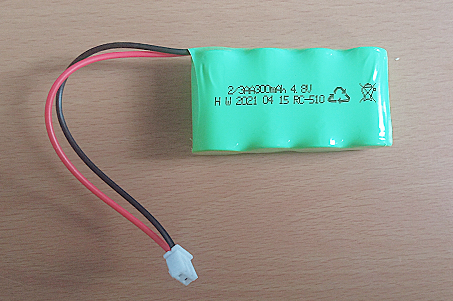

  • 4 x 2/3AA Nickel hydride rechargeable batteries.

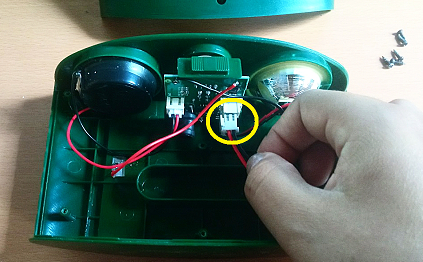

  • Connect the red and black wires to the device (the silver contacts should be facing up)

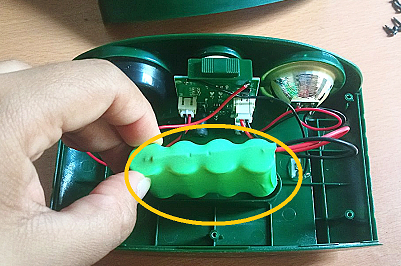

  • Fit the new set of batteries in the correct position.








Step 4: When the replacement is completed, please, proceed to screw and close the device again.






Step 5: Place the unit in direct sunlight and “OFF” position for 24 hours so that the battery can fully recharge and continue using the unit.
