Dash Cam


User manual


Disclaimer

1. Please follow the set-up and usage instructions in the print material that came with this Dashboard Camera product.

2. You should not set/install this dashcam at a place that would obstruct codes of your state/province/territory or country.

3. You should post the required notices of recordation to occupants inside the vehicle if voices or other information/ signals pertaining to in-vehicle activities will be recorded.

4. You should not change the dash cam’s setting or mode of operation when the vehicle is in motion.

5. You should not leave the dashcam in a visible spot when no one is inside the vehicle, to avoid attracting break-ins to steal the unit or other property.

6. You should avoid extended exposure of the dashcam to direct sunlight or extreme temperatures (either high or low temperature) which tend to degrade or damage the unit and its normal functionality.

7. You should examine, check, and verify the dashcam at least once every 6 months, including the memory card, to ensure the video reception and recording are working properly. For each use, you should verify that the dashcam unit, the visible lights, and the audible sounds are working normally. lf there are signs of non-operation or malfunction, you should immediately seek to replace the product and check to see if the product is covered under any applicable warranty.

8. The dashcam unit may have additional functionality, such as: transmission and recording of audio, GPS signal or other identification information. lf you have privacy concerns about these functions, make sure you follow the instructions to disable these functions.

9. You should use the dashcam unit in the way it is intended. You should not use the dashcam in a way that would be illegal or tends to physically damage the unit or cause danger to the safe operation of the vehicle or the occupant.

10. This device should not be adjusted by the driver while driving. In the event of an accident, the device may dislodge and become unsafe for passengers.


Note


· This user manual will explain in detail how to use the device, its operation, technical specifications, and precautions. Before use, please read the manual thoroughly and fully understand the guidelines. Please keep this manual, we hope our product can meet your needs and provide a long-term service to you!

· This manual may have variations due to the printing process, or because of the appearance, software, or hardware upgrades, the company reserves the right to modify its parts to make it up to date, in case of discrepancy, please contact the seller for clarifications.

·Do not put the dashcam into damp working conditions, the device is not waterproof, so please do not pour water and do not keep it exposed to rain.

·Do not try to open the shell or repair it by yourself, if the accessories for this machine have any problems, please seek professional help for repair or contact the seller for troubleshooting.

·Do not use harsh chemical substances, clean solvent, or cleaner to clean this machine, please use a moist soft cloth to clean.

·Do not use this machine under the condition of dust or dense fog, to avoid affecting the video.

·Please protect the environment, don’t discard this machine randomly; do not throw this machine into the fire.

·Please clean the lens with a moist soft cloth to avoid a blurred image.

Tips:

1. When used outdoors, please avoid long exposure to high temperatures and direct sunlight.

2. Please use original accessories.

3. If you need after-sales service or maintenance, please do not disassemble the product by yourself. Please contact the sales service provider.


Introduction

Features



  • HD camera (1080P@30FPS)

  • Continuous loop recording

  • 3.0” IPS screen

  • 170°wide angle lens

  • Parking mode (supported when the device is hardwired)

  • Max supports 128 GB Micro SD

  • Built-in G-sensor

  • Auto record and auto power-off

  • The interface supports USB/AV out

  • Supports multi-language


Installation


·Never install this product while driving.


·Install this product near the rear-view mirror to obtain the best open-field view. Do not install in a location that will obstruct your required driving view.


·Make sure that the lens is within the wiping range of the windscreen wiper to ensure a clear view even when it rains.


·Do not touch the lens with your fingers. Finger grease may be left on the lens and will result in unclear videos.


·The mount is adhesive and may be destroyed if it is removed from the windshield.


***Note: ***Before the installation, please insert the Memory Card in the TF slot and format the memory card prior to use


Front: Install the front camera attached to the windshield using the suction cup and connect the power adapter to the 12V cigarette lighter socket. Before installing the mounting piece, please clean your windshield glass. Route the cable in the interior/hide the excess cable into the interior panel and gaps to obtain a visual aesthetic.



Rear: It is recommended to connect the rearview camera above the license plate, this might require drilling 2 holes and attaching them with the screws from the kit. *** Important Note: This might require a little knowledge of car electronics, in case you are not sure how to properly set it up, it is highly recommended to seek professional help, such as a car electrician.


*Using a Phillips head screwdriver, remove each of the screws holding your rear license plate in place. Then, pull the plate off and set it aside. Make sure you don't lose the screws, right above the license plate, place the rear camera, and using a marker, mark the two holes through the rear camera stand. Make sure the camera is aligned straight.



*Pop open your trunk and look for a solid interior panel covering the opposite side of your license plate mounting area. Removing this panel will expose the car’s rear wiring chambers.



*Please connect the RED cable to the positive lead of the reverse light wires (The cord that connects your car's tail lights to the dashboard). Reverse light wires are the cords that connect your car’s tail lights to the dashboard. They hook directly into your vehicle’s tail lights and are normally located in the hatch or trunk of your car.



*Using a wire stripper or pliers, peel back the rubber covering the wires. Then, use a screwdriver or other thin tool to poke a hole through the middle of each exposed wire, separating the individual wire strands.  (For safety, make sure you do this while the car is turned off.)

*Attach 1 of your bare wire cables to the camera cord’s power connector. Then, poke your bare wires through the center of the exposed reverse light wires and twist them together. For safety, make sure you wrap the combined wires in electrical tape.

*** Important Note: (Make sure you poke your positive (usually red) bare wire through the positive reverse light wire and the negative (usually black) bare wire through the negative reverse light wire.)



*Connect your RCA cable to the camera cord’s video connector if necessary. Then, run it through your vehicle to the area by the fuse box. Depending on your vehicle model, you’ll usually be able to do this by peeling back the automobile’s headliner or side panels and pulling your cable through the exposure chamber.

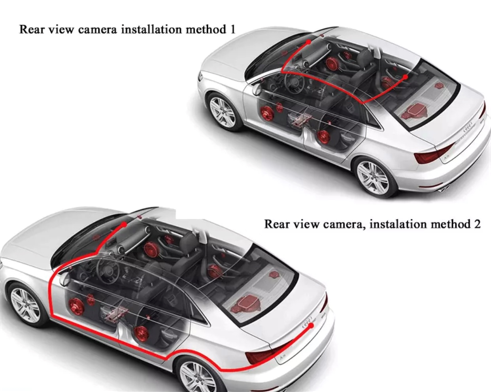

There are two ways to route and position the rear dash cam and cable, please see the images below:



Settings


VIDEO RECORDING MODE SETTINGS



In the video recording mode, please press the OK button to stop recording and press Menu to open the video settings. You will find the following features:


Resolution- 1080 FHD/ 1080P/720P.  Select your preferable video resolution.


Loop recording-  OFF/1 Minute/2 Minutes/3 Minutes/5 Minutes. The video recordings will be saved in time segments of 1-2-3-5 minutes depending on your selection within this feature. Loop recording on a dashcam allows for continuous recording even if the SD memory card reaches full capacity. This means older files are overwritten once the SD card reaches its file size limit. In the event of an incident, any files that have been protected by activation of the G- sensor, or by manually pressing the lock button will not be overwritten and will stay on the SD card. Therefore, important clips that can be used for insurance purposes or sent to the Police will stay locked on the card and will not be deleted. This also means that, at some point, your SD card will be full of protected recordings, and the SD Card would need to be formatted in order to make free space.)


Exposure-  +3/ +2/ +1/ 0/ -1/ -2/ -3. Increasing exposure makes videos and images look lighter or darker. If your video is too dark, the selection of a positive number is recommended. If your video is too bright, select negative numbers.


Motion Detection- Off/On.  The Dash Cam includes a built-in G-Sensor which allows the device to determine when the car has been in a collision. If it detects a collision, it automatically locks the recording being made at the time of the accident. High selection will make the system more sensitive, and low setting ensures the system will react only to greater shocks


Record Audio- Use this button to enable or disable audio recording on your footage: Off/On

Date Stamp Off/On- Select ON if you want the date on the recordings to be visible


G-sensor-  Off/High/In/Low. The Dash Cam includes a built-in G-Sensor which allows the device to determine when the car has been in a collision. If it detects a collision, it automatically locks the recording being made at the time of the accident. High selection will make the system more sensitive, and low setting ensures the system will react only to greater shocks.


HDR- Off/On. It improves contrast in an image while maintaining clarity. HDR can be particularly important in a Dash Cam in helping to produce vibrant and clearer imagery, ultimately resulting in enhanced footage. When driving at night time and in low light levels, HDR can significantly improve image clarity. It will record multiple exposure levels for each frame and conduct tone mapping to ensure the optimum footage is recorded.


License plate- Off/On. Select ON if you want the car number on the recordings



*** Press the Menu again to open another page of settings.


Park mode- Off/On. This feature is available only when the car is in the ignition. The parking guard uses the Motion Sensor and G-Sensor to optimize recording functionality while your vehicle is parked. The idea is that when you are parked, the dashcam will be “sleeping” but it will monitor the video image for motion and it will also monitor the G-sensor. If it detects motion or if it detects an impact then the unit will wake up and start recording.


Date and time - Use up and down to adjust the date and time on your Dashcam.



Auto power off-  Off/1 minute/3 minutes. When the ignition is turned off, after the selected period of time, the Dash Cam will perform an automatic shutdown process.


Screen saver-  Off/3 minutes/5 minutes/10 minutes. This option allows you to set the duration after which the device’s display will go dark, but the camera will still keep recording. The screen will turn dark after 3 Minutes/ 5 Minutes/ 10 Minutes, based on the selected option. It is highly recommended to use this feature in order to avoid distractions while driving.

Beep sound- Off/On. Use this feature to enable or disable sound alerts when pressing camera buttons.

Language- Select the preferred language within this feature.

Frequency- 50Hz/60Hz.

Flash- Off/On.

Format - OK/Cancel. Use this feature to format your memory card.

Default setting- OK/Cancel.  Returns camera settings to default values

Version- Current device version display.


PHOTO SETTINGS


When you are in the Recording mode (which is a default setting when the Dash Cam is turned on), short press M button to enter Photograph mode. Click the “OK” button to take a picture.


Settings within the mode:


  • Resolution: 12M/10M/8M/5M/3M

  • Sequence ON/OFF

  • Quality- Good/Normal/Economy

  • Sharpness- Strong, Standard, Soft

  • White Balance- Auto, Sunlight, Overcast, Tungsten, Fluorescent (white balance)

  • ISO

  • Exposure- -3, -2, -1, 0, +1, +2, +3

  • Anti-Shaking Close/Open

  • Quick Review

  • Date Stamp


PLAYBACK


Once you’ve entered recording mode, one pressing of the “M” button will bring you to Photograph mode, and another pressing of the “M” button will bring you to the Playback mode.


Use the UP and DOWN buttons to go through your files, and use the “OK” button to playback the video.


Settings within the mode:


  • Delete-  Delete Current? / Delete All?


  • Protect-  Lock current/ Unlock current / Lock ALL / Unlock ALL


Hardwiring


INTRODUCTION



A hardwire kit is a device used to help you directly connect your dashcam to your vehicle’s fuse box. By hardwiring your dashcam, you’ll be able to run and operate your dashcam 24/7, even when your vehicle is turned off.



The installation process should take around 20 minutes and will require several tools to ensure a safe installation. Before you begin, please get familiar with the Fuse Box of our vehicle. Understanding the role and how the fuse box works will be crucial to the installation process.



Hardwiring your dashcam is an advanced installation method that requires technical know-how. We highly recommend reading through this guide in its entirety before beginning.



*** Important Note:  Improper installation and handling may cause serious damage to your vehicle and Dashcam.

  • The seller is not liable for any mishandling or damages that occur due to improper installation or misuse of the device.

  • Please check the health of your vehicle’s battery before installing your hardwire kit and dashcam. If your car battery is in poor health, we recommend replacing your battery.


REQUIRED TOOLS



For hardwiring your Dashcam you will need:



  • Hardwiring kit

  • Add-a-Fuse taps and extra fuses ( sizes: ATO (regular), mini fuse, low profile mini fuse, Micro 2 fuse. Fuse sizes vary depending on your vehicle design and model, make sure to check your fuse box to see what type of fuse your vehicle requires)

  • A multimeter or circuit tester

  • Pliers, fuse puller, wire crimper, or a clamp



PROCEDURE

  • Locate your fuse box and remove the panel- The location of your car fuse box will differ from car to car. In most cases, your vehicle’s fuse box can be located inside the engine bay or inside your trunk. Refer to your user manual for the exact location of your battery.

  • Decide which fuse to use- We suggest using fuse slots rated between 10A-30A. Avoid fuses related to safety features, such as airbags, horns, stability control programs, etc. Fuses that control certain elements such as the radio, cigarette lighter, garage door opener, sunroof, etc. are usually safe to use.

  • Different cars use different fuse types, select the fuse tap that matches the fuse type you have in your car ( ATO (regular), mini fuse, low profile mini fuse, Micro 2 fuse)

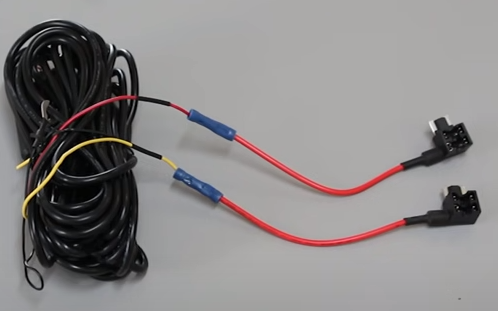

  • Hardwire cable includes 2 wires (red wire, and ground-black wire) that will need to be connected to the fuse box. The constant fuse slots will always have power and ACC fuse slots will only have power when the ignition is on.

  • The black wire is ground

  • Check which fuse type your car uses and crimp the red wire of the cable to the appropriate size fuse tap

  • Choose the most suitable fuse. Open your fuse box and use the multimeter to find a constant 12-volt fuse.


  • Probe the fuse you have selected (it can be a lamp or some other minor car fuse) to see if it has constant power (the car must be off, with no ignition, when the car is off, the multimeter should show voltage when you probe it with the Multimeter). Using a fuse puller or a pair of pliers, gently remove the fuse you have selected.

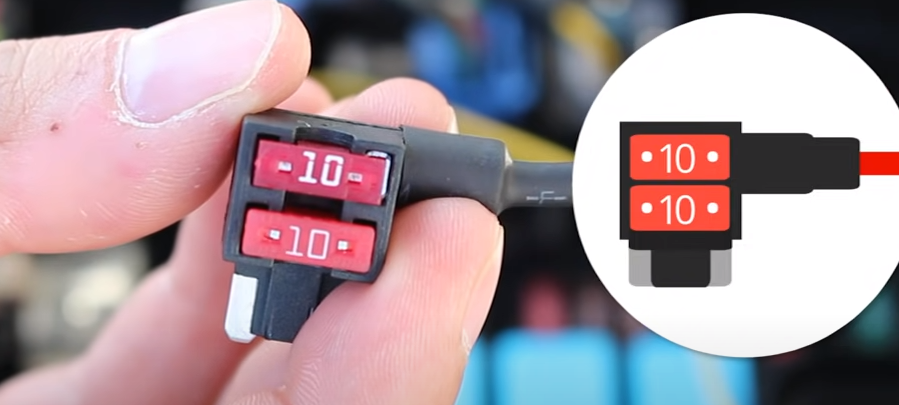

  • The fuse tap has two fuse slots: the upper is for powering the Dashcam, use the new fuse (make sure it has lower or equal amperage than the original fuse) and put it in the upper slot, the bottom slot is for the fuse you have taken out of your car, please put it in there.



  • Plug the fuse tap into the fuse box.



*** Important Note:  Make sure you put the fuse tap in the correct orientation. Each fuse slot has a positive and a negative terminal depending on your vehicle’s model. This means that the power is coming into your fuse slot from one side and exiting from the other. Use your circuit tester or multimeter to test each terminal of the constant fuse slot for power.

The terminal with the power is positive and the terminal with no power is negative.

After testing the terminals of the constant fuse slot, insert the fuse tap (Add-a-Fuse)in such a way that the terminal that is furthest away from the wire goes into the positive terminal of the fuse slot.







  • Ground your wire- The metal ground will need to be attached to a metal bolt or screw within the vehicle chassis. This is achieved by loosening the bolt/screw, sliding the connector underneath the bolt, and tightening again.

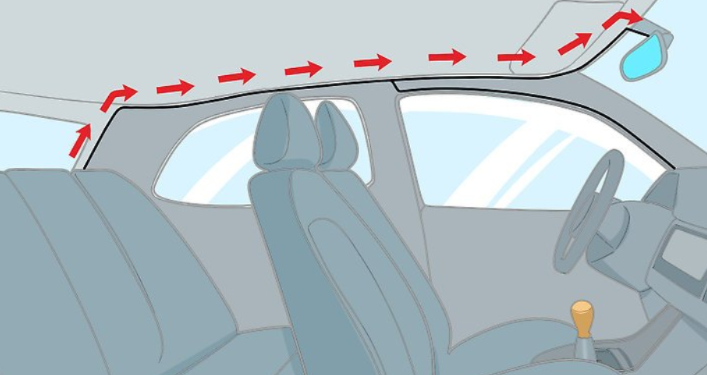

  • Hide a cable- Lead and tuck the cable up to the headliner and your Dashcam

  • Plug the cable into the Dashcam and turn it on



*** Important Note:

  • Make sure your Parking more is turned ON (check settings) so that it can turn on every time the vehicle detects impact
