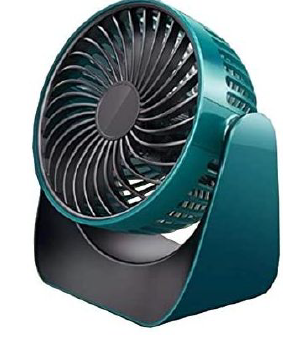

Portable Desk Fan F118

Desktop Fan User Manual




1. Introduction


The portable small desk fan is compact and designed in a unique modern look, made in premium material that is durable and looks textured, it's ideal both for your own use or as a gift for your friends. It has a powerful adjustable head with 360° vertical and horizontal rotation which can keep you cool from any angle. With a high-quality motor that features 3 speeds, our desk fan accommodates your needs. This quiet fan is compact enough for a table or wall mount & powerful enough to help provide comfortable cooling in small to medium rooms. Our fan is energy-saving and environmentally friendly.



2. Content


One set includes a Table fan, USB charging cable, the manual.


3. How to use


Please unpack the product and use a DC 5V adapter to charge the product.


The red light will turn On, indicating that the product is charging properly.


The product supports side charging and fan

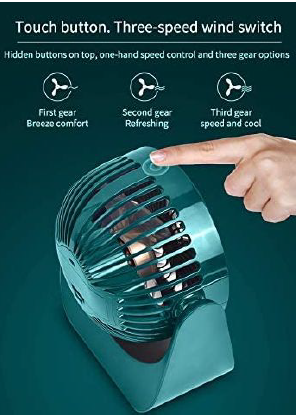

work at the same time. On top of the fan, you will find the power switch, press it once and the fan will start working.

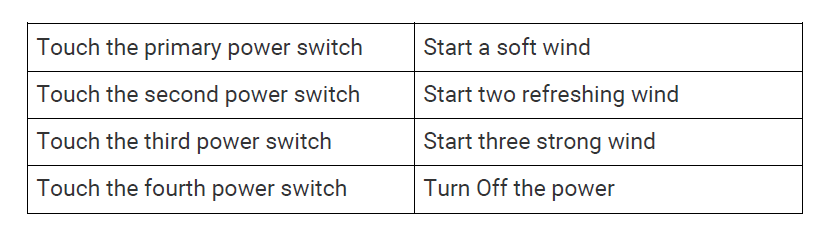

Every time you touch the power switch, the wind speed will increase until the third gear, where the cycle ends, and the fan

shuts down.


In case you wish to shut down the fan, press and hold the power button for 2 seconds. To ensure the battery life and the saturation of the battery charge, it is recommended to use the fan at low speed.



4. About the product


There is an anti-skid silicone pad at the bottom of the base which helps to reduce vibration. Our fan is expertly crafted using durable plastic construction with a patented fan blade design.


Comes with a USB cable compatible with all USB ports. Additionally, it has a built-in 2000mAh rechargeable lithium battery and can be used for up to 2-3 hours continuously in strong wind mode when fully charged. This fan is 5.1"x6.2"x6.8" small and weighs only 1lbs. It is lightweight to carry or store anywhere you want.


Wind Speed: 3-speed regulation

Rated Power: 4W (MAX)

Input Power: 5V/1A

Standby time: 5-6H

Battery specification: rechargeable 18650 battery, Battery: 2000mAh

Power Interface: Micro USB

Charging time: 2-4H

Product dimensions: 5.1" x 6.2" x 6.8"

Color: Cyan

Material: ABS, PP

G.W.: 1lbs

Switch type: touch type

Features: can rotate 360°, less than 40 dB, anti-skid silicone pad at the

bottom;
