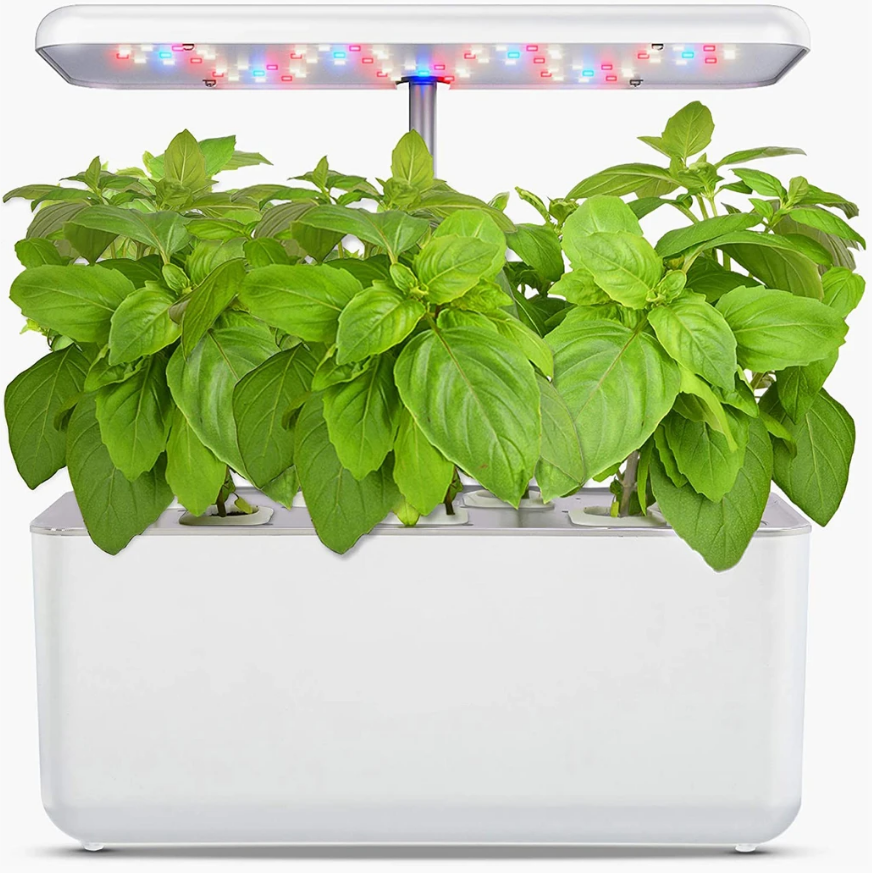

Indoor Hydroponic Garden - Starter Kit with LED Grow Light















SAFETY INSTRUCTIONS



  1. To reduce the risk of electrical shock, do not alter or change the plug adapter in any way.

  2. Always unplug the garden kit from the outlet before performing any routine maintenance or changing the water pump.

  3. Never use the garden kit if it has a damaged cord or plug adapter, do not use the garden kit if it is malfunctioning or has sustained any type of water damage.

  4. Keep the cord away from any heated surfaces to prevent damage.

  5. Do not use this product outdoors, it is intended for indoor household and residential use only.

  6. Do not allow water to touch the hot LED lights.

  7. Do not submerge the electrical outlet, cord, plug adapter, or lampshade in water during cleaning.

      8. To prevent any water damage to the machine, always ensure that all electrical parts are never submerged in water. If water is spilled over any electrical components, quickly and thoroughly dry all cables and electrical-related parts immediately.

     9. This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

10. The machine always requires 4-5 liters of water to operate properly.

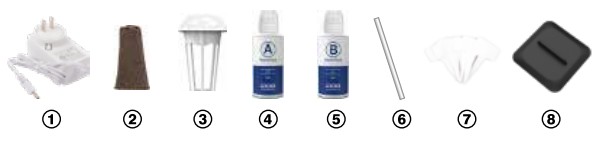

GARDEN KIT






  1. Plug adapter

  2. Sponges

  3. Basket kit

  4. A solid nutrient

  5. B solid nutrient

  6. Rod

  7. Tag

  8. Cover



SPECIFICATIONS



Input: 24V-1A

Rated Voltage: DC 24V

Rated Power: 24W

Noise: <40dB

Temperature: 59°F-86°F

Size: 15.83 x 7.01 x 9.65in

Weight: 4.6lb


HOW TO RAISE AND LOWER THE LAMPSHADE



To raise the lampshade, press one hand around the bottom of the lampshade while simultaneously grasping the upper part of the Light ost with your other hand. Push up to raise the Lampshade.

To lower the Lampshade, press the Lampshade down with one hand.

TIP: When planting a new seed pod, set the lampshade to the lowest possible position.



OPERATION PROCEDURE



Step one: Add water

Remove the lid of the water tank

Fill with tap water or distilled water

Do not use well water or softened water.


The “Beep” will sound when the water level is low. For best results, always maintain the water level between 4.5-5 liters of water.


Step 2: Add Nutrients


Fill Bottle A with room temperature water and share well.

Fill Bottle B with room temperature water and share well.

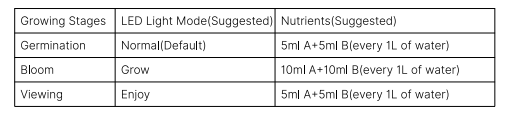

Add 25 milliliters from bottle A and 25 milliliters from bottle B for every 5 liters of water added to the tank. (Max water level is 5L)



NOTE:



Suggest changing the water once a week to ensure that the potassium content

is sufficient.

Adding too many nutrients may be harmful to your plants.

Always top off water levels when adding liquid nutrients.

Do not use well water or softened water, it will interfere and unbalance the nutrients.

Using well water or softened water may result in plants suddenly browning or having poor growth.

Unopened Nutrient bottles have a shelf life of 2 years when stored at room temperature and not exposed to sunlight.

Mixed Nutrient bottles have a shelf life of 5 months if stored without exposure to sunlight.



Step 3:  Plug-In


Do not plug in the adapter without water in the tank.

You will hear a “Beep” sound after plugging in the adapter, indicating that the light panel can be controlled.

If you do not hear the “beep” sound, push or re-insert the rod down into the bottom until you hear a “Beep” sound.


Push or re-insert the rod down into the bottom until you hear a “Beep” sound if the pump begins to run immediately. This can be an indication of a poor connection.

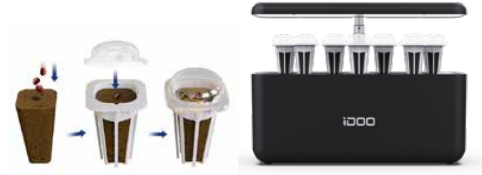

Step 4: Add Seed Sponges and Basket Kits


The garden kit does not include the seeds.

Choose well-known brand seeds from your local store.

Add 3-4 seeds per sponge to improve the germination rate.

Some seeds will take up to 7 days to germinate.

Choose only ONE seedling, multiple seedlings may result in poor growth and will not receive sufficient nutrients.




Garden Placement



Place your garden on a sturdy, water-tolerant surface.

Keep out of reach of children or pets.

Position your garden away from any direct source of heat (stove, furnace vents) or cold (A/C vents, window drafts). The Indoor Garden Kit does not need any additional lighting, too much direct sunlight may damage your plants.

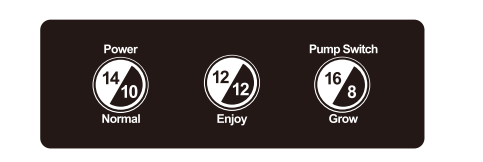

Control Panel Settings




Power: Press the Power button to turn on the appliance. LED light and water pump start to work.

Press and hold the button for 3 seconds until you hear 2 “Beep” sounds to turn off the appliance.


Short Press below buttons to turn on and switch the different light modes. The light will automatically cycle on unless you turn off the Power (Press and hold the button for 3 seconds).


Normal: Lights will illuminate for 14 hours/day.

Enjoy: Lights will illuminate for 12 hours/day.

Grow: Lights will illuminate for 16 hours/day.

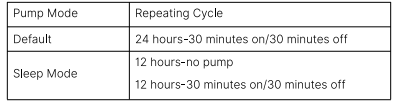

Pump Switch: Press and hold the button for 3 seconds to switch the different pump cycle modes.



Important notes about LED Light




Once you choose a light mode, the light will automatically turn on and off to provide your plants with the "sunshine" needed. There is no need to manually turn the lights on or off.

If the light turns off suddenly, push or re-insert the rod down into the bottom until you hear a "Beep" sound, and then press the "POWER" button, the light will be on. The Garden Kit has a layer of soft rubber to prevent water from seeping into the electrical components, which may result in a poor connection when inserting the panel port.


Gardening Tips for Maximum Harvests



Germination


Always check the seed information regarding optimal temperature days to germinate. Plant 3-4 seeds per sponge and allow 2-7 days to germinate. Many factors impact germination.

The basket lid will help regulate moisture and temperature for optimal germination. Leave them on until plants are nearly touching the lid, then take them off. Use fewer than 7 pods with plants like tomatoes and peppers to account for the larger plant size. Allow some space in between the seed pods for plant growth.

Temperature is a key factor in successful plant germination and growth. Cold weather plants such as lettuce and kale will germinate better in cooler temperatures. Heat-loving plants such as tomatoes and peppers will germinate faster in warmer temperatures (above 70 degrees). All seeds are different and may take longer to germinate.



Transplant


Your seedling is ready for transplant when you see the rhizome forming around the sponge. Split the sponge to take one seedling out and transplant it to a larger pot. Keeping more than one seedling in the sponge may result in insufficient nutrition. Only keep ONE seedling per sponge.



Pruning


Read the information on the seed packet to better understand the appropriate temperature and days to lower your plant light. Do NOT raise the light! For best results, prune your plants and keep them trimmed and compact to allow light to properly shine on all the plants.

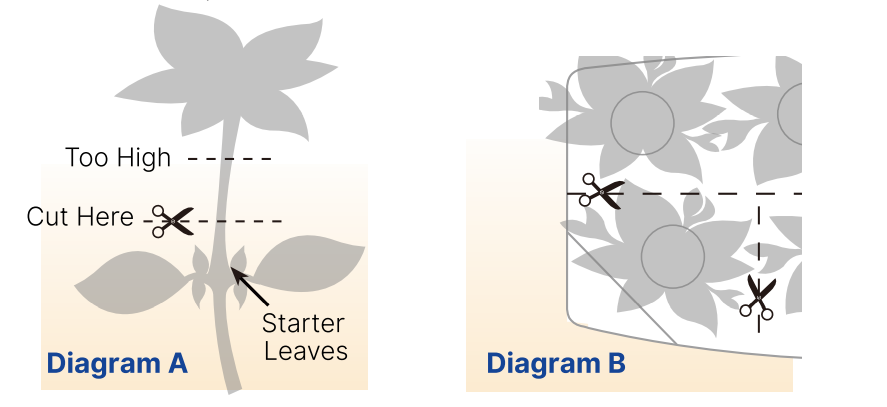

Do Not raise the Lampshade too soon on fast-growing plants like basil. Pruning your plant above a new leaf set (Diagram A) and leaving the lights low, will allow your plants to properly mature and receive all the light that is needed to flourish.

Prune often to maintain a healthy garden, but never trim more than 1/3 of each plant at a time.


Plants compete for light and when left unattended, the faster-growing plants may block the slower-growing plants from receiving the proper amount of light. This can suppress growth and eventually your plant may die off. Spreading leaves must be trimmed (diagram B)to ensure that slow-growing plants get enough light to thrive and produce.

Pruning means your harvesting! Each time you prune, you get to enjoy the fresh herbs that you have grown in a salad, soup or pizza. A full and abundant garden looks much better than a couple of large, spindly plants surrounded by straggly, light-starved plants. You also get to enjoy the aroma and scents that are released every time you prune your plants. So, Prune!


Prune often to maintain a healthy garden, but never take more than ⅓ of each individual plant at a time.


Finally, pruning= harvesting.



Lights


Plants love light! Always keep your Grow Lights as close to your plants as possible. Plants should be 1-2 inches below the lights.

Always check to see if you can prune your plants rather than raise the Grow Lights.


After Pruning, always lower the lights to sit 1-2 inches above your plant if possible.



Pollinating


You will need to start pollinating your fruiting plants (tomatoes, peppers) once they begin to flower. This will usually occur during weeks 4-6 after planting.

To pollinate, use one or more of the following methods;

With an open hand and gently move through the foliage in a back and forth motion. This will allow the plant to spread its pollen.

Place a fan near your plants, the moving air will help pollinate your plants.


Harvesting


The Garden Kit works best with a harvesting method called "cut and come again." Simply put, you enjoy frequent small harvests and then allow the plants to regrow. This allows you to harvest again and again.

Enjoy frequent, smaller harvests for the first month or two until plants mature and larger harvests are available. Harvest often to help maintain a healthy garden but remember never take more than 1/3 of each plant at a time. For Salad Greens, cut

 Inches off the top of each plant, or harvest large leaves individually by cutting them off at the base of the plant.


Cleaning Pump


Clean out the cotton of the water pump at least once a month. You can take the cotton out of the pump and wash it thoroughly, then simply reinsert the cotton. Do NOT plug the adapter when the water tank has no water, it will shorten the life span of the pump.


FAQs



1.    How to clean the water pump?


Step 1. Turn the power off

Step 2. Remove the extendable rod and the top cover of the water tank.

Step 3. Take out the sponge in front of the water pump and rinse it with water ONL Any washing liquid will harm the nutrition balance. (If it is very dirty, please rinse the water pump altogether)

Step 4. Install those back and restart the machine.




2.    Why do only a few of the plants grow and once grown, they quickly wither?


a.    The seeds you purchase make a difference. For best results, purchase seeds from reliable manufacturers and avoid purchasing seeds that are not suitable for water hydroponic devices.

b.    Ensure you are using the correct proportion of nutrient solution to water, LED Light distance from the plants, and temperature as stated in the user guide.


3.    Why does the pump start with noise?


a.    Regarding the problem, please switch the water pump mode to try again.

b.    Clean the water pump as stated in the user guide.


4.    The light is too dazzling, what should I do?


a.    Please switch the light mode from 'Grow mode' or 'Enjoy mode' to t Normal mode'.


5.    Can a sponge be reused?


It's reusable if pull out the stem of a plant, but we don't recommend doing so as it's not as good as the first use.


6.    Does it kill the plant to remove it from a sponge (if I want to move it to a pot, for example)?


Normally, it won't, but you better wait until it's vigorous to improve the survival rate.


7.    Why does the pump never turn off?


Push or re-insert the rod down into the bottom until you hear a 'Beep" sound.


8.    Why the LED light can not be turned on?


Push or re-insert the rod down into the bottom until you hear a "Beep" sound, and then press the "POWER" button, the light will be on.

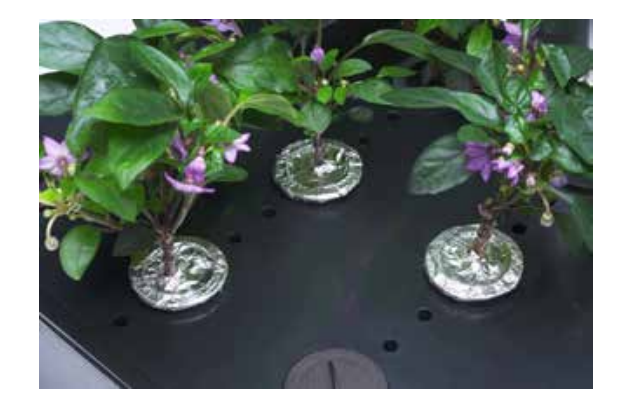

9.    How to prevent the sponge from getting moldy/algae?


Cover the sponge with an opaque film, such as tin foil.


Warranty


The manufacturer's warranty is void under the following circumstances but not limited to:


    Improper or inadequate maintenance or modification.

    Accident, misuse, abuse, contamination, or other external causes.

    The use of unspecified adapter and accessories.

    Loss or damage in transit.

    Damages that occur as a result of one's failure to follow the instructions.

    This warranty does not apply to expendable or consumable parts and does not extend to any product from which the serial number has been removed.
